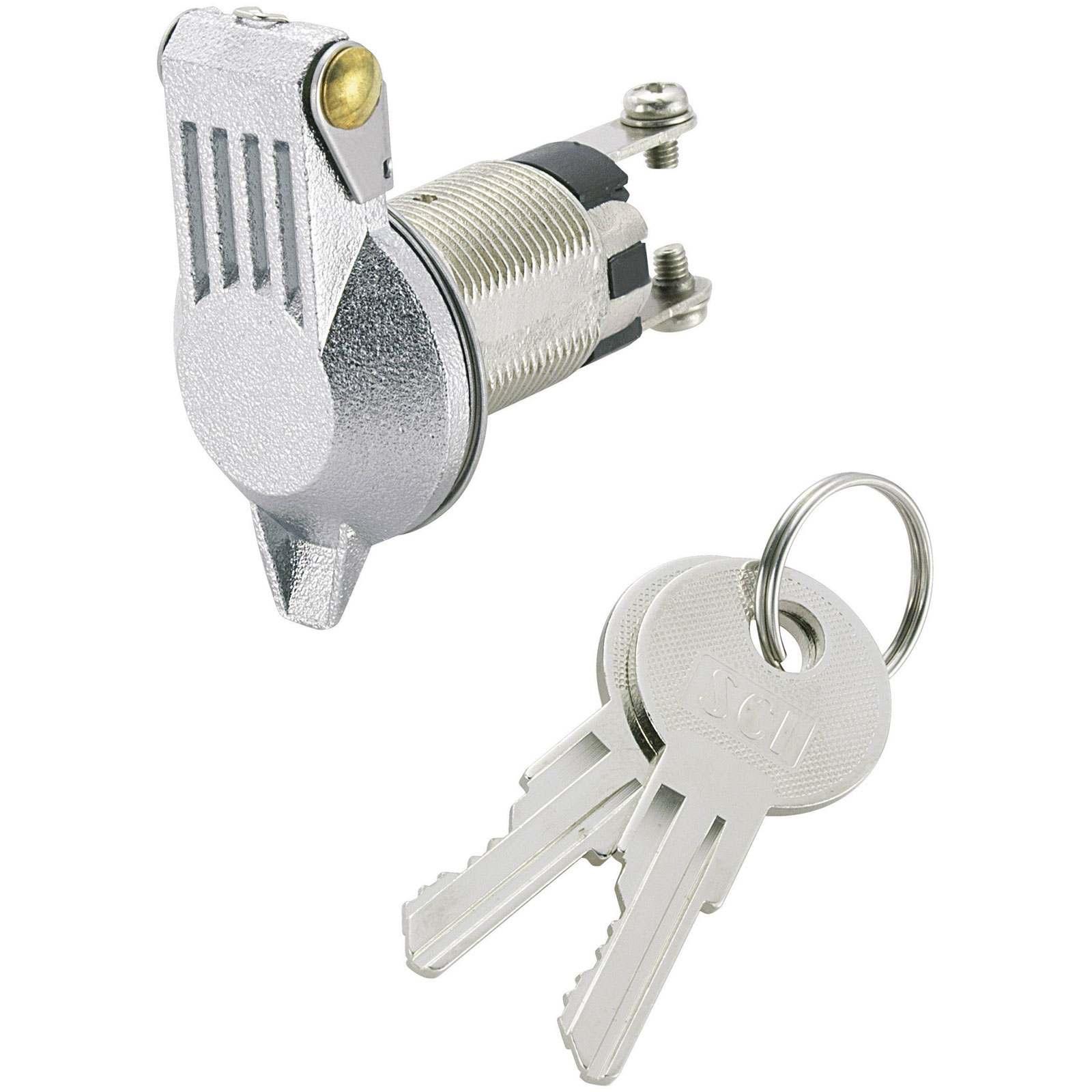

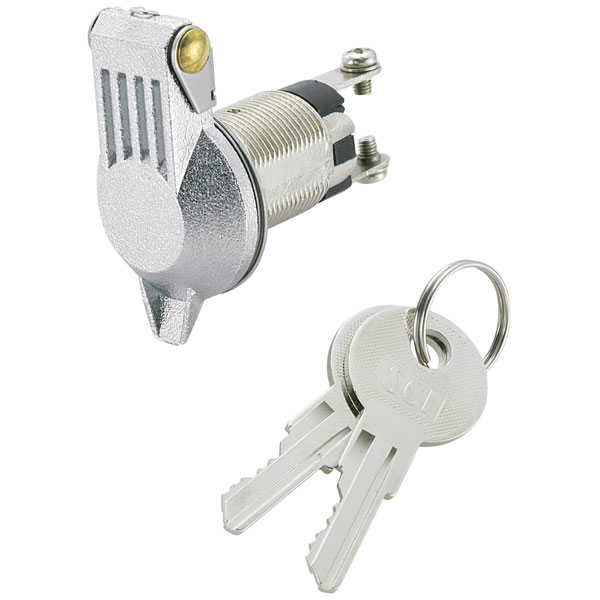

TruComponents 783059 Key Switch Panel Mount 1xOff/On Non-illum. Screw IP40

The TruComponents TC-K3-16B-06, 1588006 is a key switch designed for panel mounting, featuring a 1x Off/On switch configuration. This robust switch, coloured black, operates at 24 V DC with a current rating of 10 A and a 90-degree turn operation, ensuring reliability in various applications. Ideal for use in industrial machinery, control panels, and security systems, it boasts an IP40 rating, providing adequate dust protection in controlled environments.

Type	Key Switch
Casing/button colour	Silver
Connection	Screws
Contact type	1 maker
Front panel thickness	19mm
Functions	latch
Key removal position	Off/On
Material	Metal
Misc Attribute	TC-K3-16B-06
Recess diameter	19.2mm
RoHS-compliant	Yes
Switch position	1 x Off/On
Switch postions	2
Switching angle	1 x 90 °
Switching current (max.)	10A
Switching voltage	24V DC
