TruComponents 782742 Keyboard ,PCB Mount,Off/(On),D6,Red

TruComponents
Standard range
Order Code:

78-2742

Brand: TruComponents MPN: 782742 EAN-13: 4064161300658
Qty Unit Price (Ex VAT)
1+ £1.04
5+ £1.01
10+ £0.985
25+ £0.963
50+ £0.942
100+ £0.921
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
2 in stock, despatched same dayBack-order availability date - 23/05/2025

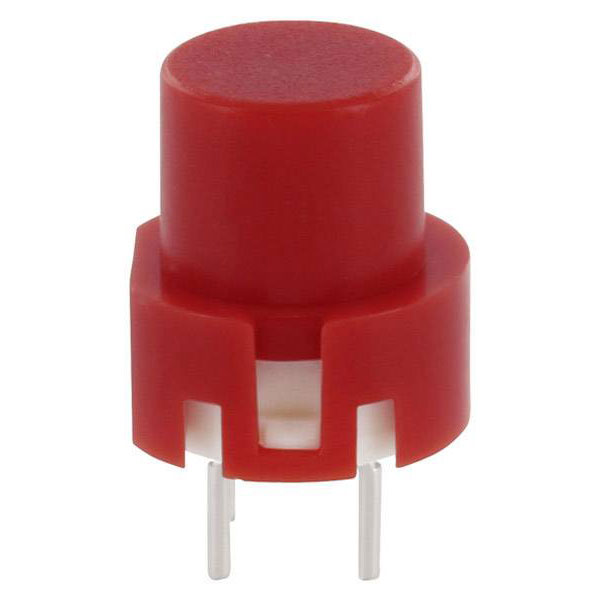

The TruComponents TC-D6RT is a momentary pushbutton switch designed for PCB mounting. It features an impulse relay with a voltage rating of 35 V DC and a current rating of 0.01 A, ideal for low-power applications. Typical applications include control panels and electronic projects requiring user input.
Type Pushbutton
Actuating force 1.3N
Button diameter 9mm
Casing/button colour Red
Connection Solder pins
Contact type 1 maker
Durability 100000
Functions momentary
Insulation resistance 100 GΩ
Key type Input button
Lighting type None
Max. temperature 60°C
Min. temperature -10°C
Misc Attribute TC-D6RT
Recess diameter 11.4mm
Resistance 100mΩ
Switching current (max.) 0.01A
Switching voltage 35V DC
