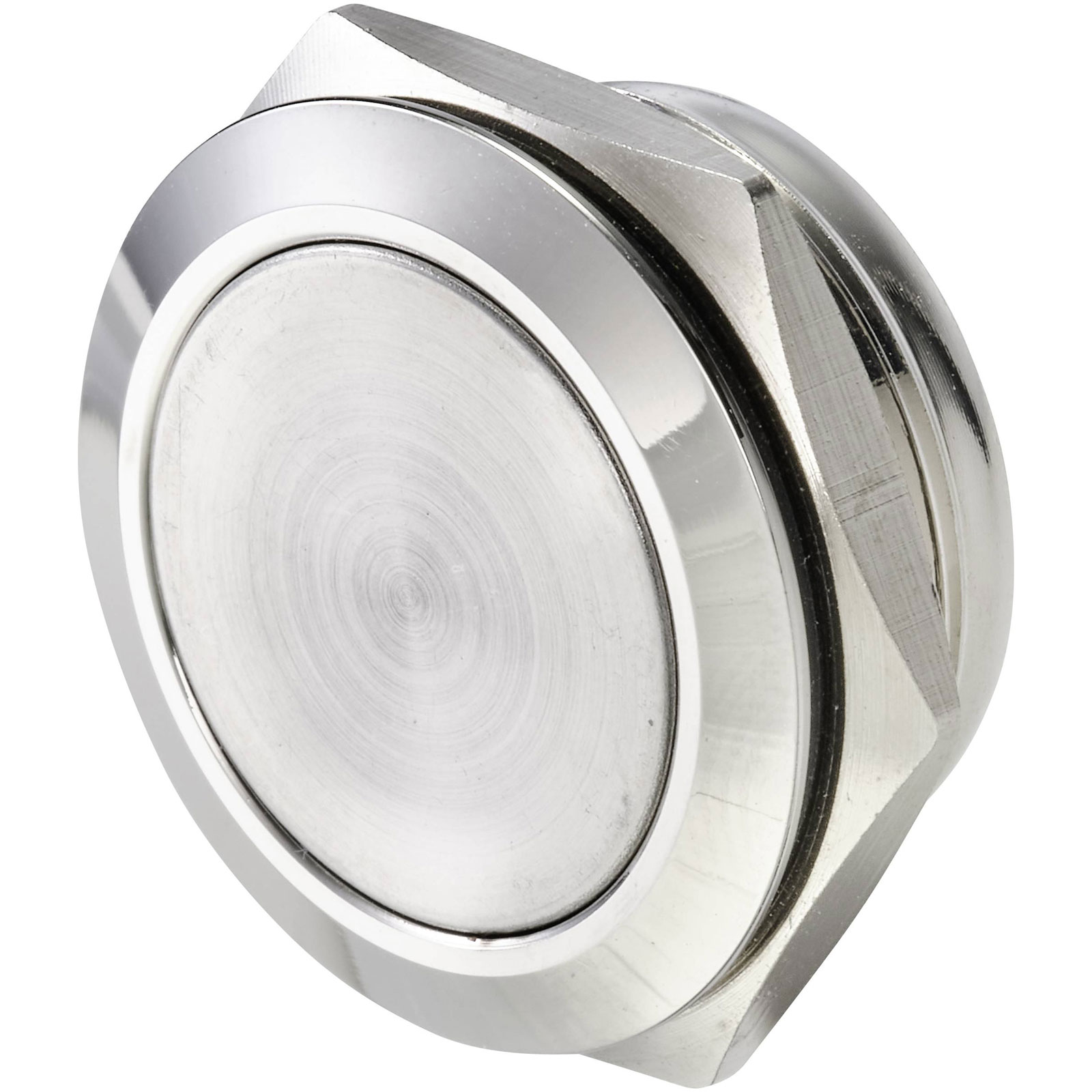

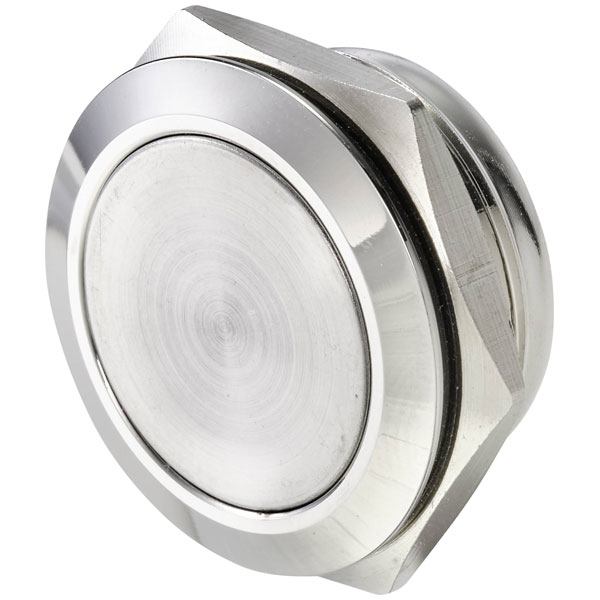

TruComponents 782728 Pushbutton ,Panel Mount,Off/(On),SPST-NO,Solder,IP65

TruComponents manufactures the TC-9563744 pushbutton, which is a panel mount switch with an Off/(On) SPST-NO configuration. This switch operates at 12 V and 0.005 A, featuring an IP65 rating for dust and water resistance. Ideal for low-power applications, it provides reliable performance in environments requiring protection against the elements.

Type	Pushbutton
Contact Configuration	1 x Off/(On)
Switch Function	Contact
Current Rating	0.005A
Mounting	Panel
Illumination	Non-Illuminated
(Ø)	17.8mm
Button Diameter	12mm
Casing/button colour	Stainless steel look
Connection	Plug
Contact Resistance	≤50mO
Dim	(Ø x H) 17.8 mm x 14.5 mm
Electrical lifespan	50000 times
Height	14.5mm
Insulation Resistance	≥1000MO
IP Rating	IP65
Material	Stainless steel
Misc Attribute	TC-9563744
Packaging Type	Bulk
Recess Diameter	16mm
Resistance	≥1000MO
Switch/button features	Planar
Switching Voltage	12V
