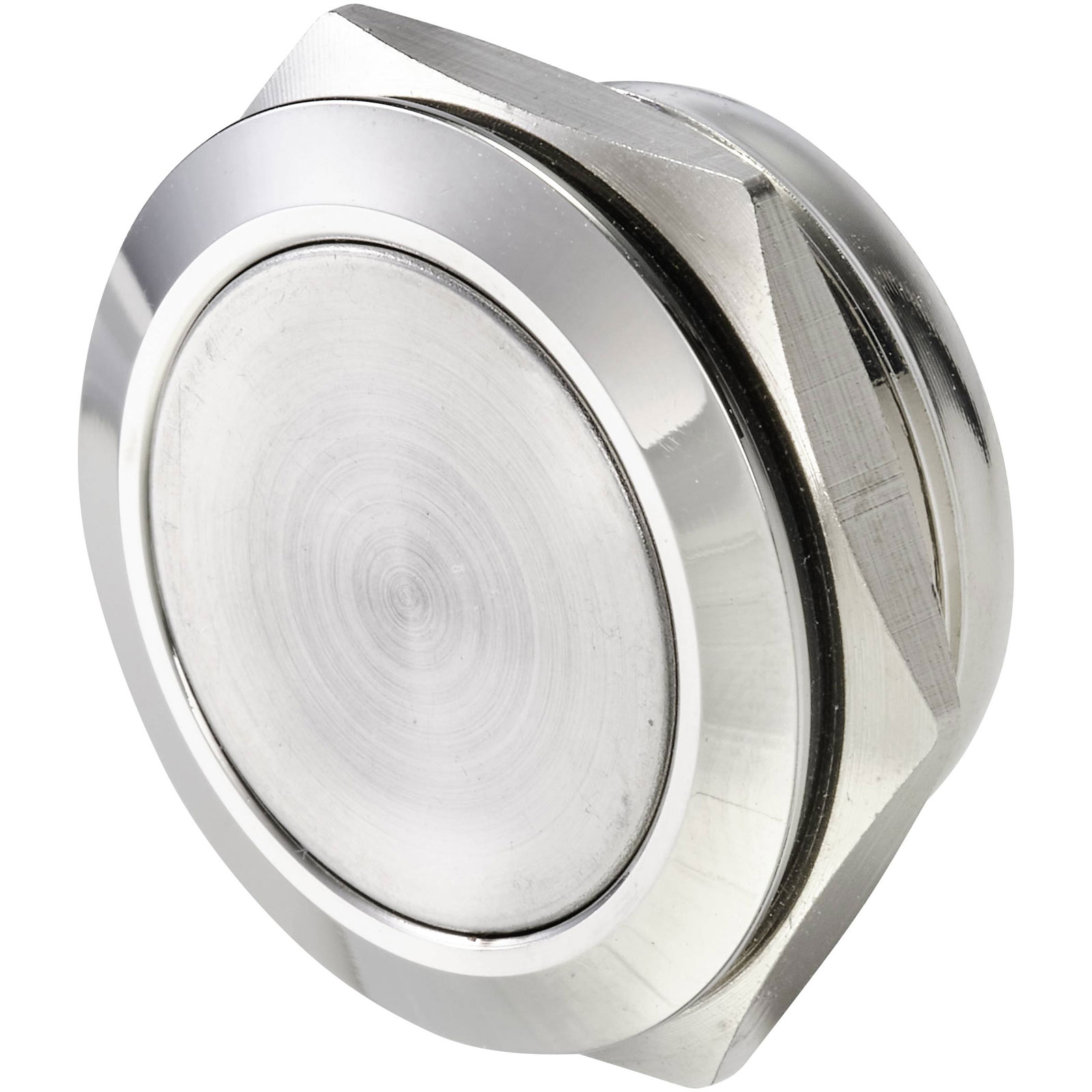

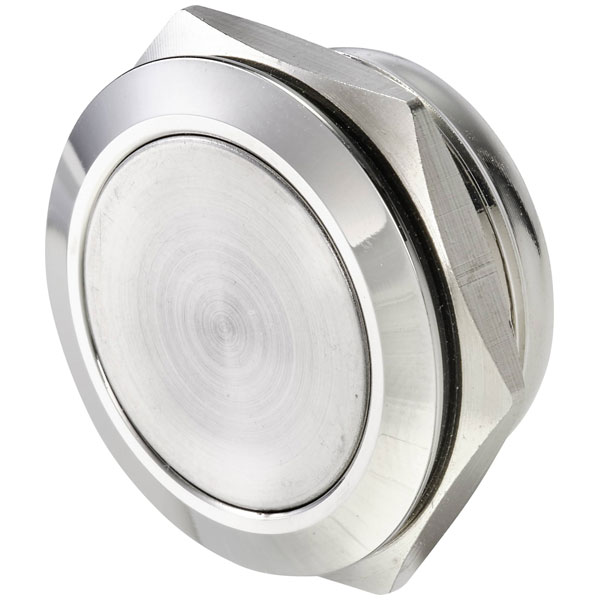

TruComponents 782727 Pushbutton ,Panel Mount,Off/(On),SPST-NO,Solder,IP65

TruComponents
Order Code:

78-2727

Brand: TruComponents MPN: 782727 EAN-13: 4064161189840
Qty Unit Price (Ex VAT)
2+ £3.86
5+ £3.77
10+ £3.68
25+ £3.59
50+ £3.51
100+ £3.44
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
423 available to back orderBack-order availability date - 09/01/2026

TruComponents offers the TC-9563740 pushbutton, a panel-mount switch with an off/(on) SPST-NO configuration, suitable for low voltage applications at 12 V and 0.005 A. The pushbutton is designed for durability with IP65 protection, making it ideal for environments requiring moisture and dust resistance. Common uses for this pushbutton include control panels and machinery where quick, temporary activation is needed.
Type Pushbutton
Contact Configuration 1 x Off/(On)
Switch Function Contact
Current Rating 0.005A
(Ø) 21.7mm
Button diameter 15.5mm
Casing/button colour Stainless steel look
Connection Plug
Contact Resistance ≤50mΩ
Dim (Ø x H) 21.7 mm x 14.5 mm
Electrical lifespan 50000 times
Height 14.5mm
Insulation Resistance ≥1000MΩ
IP Rating IP65
Material Stainless steel
Misc Attribute TC-9563740
Packaging Type Bulk
Recess diameter 19mm
Resistance ≥1000MΩ
Switch/button features Planar
Switching Voltage 12V
