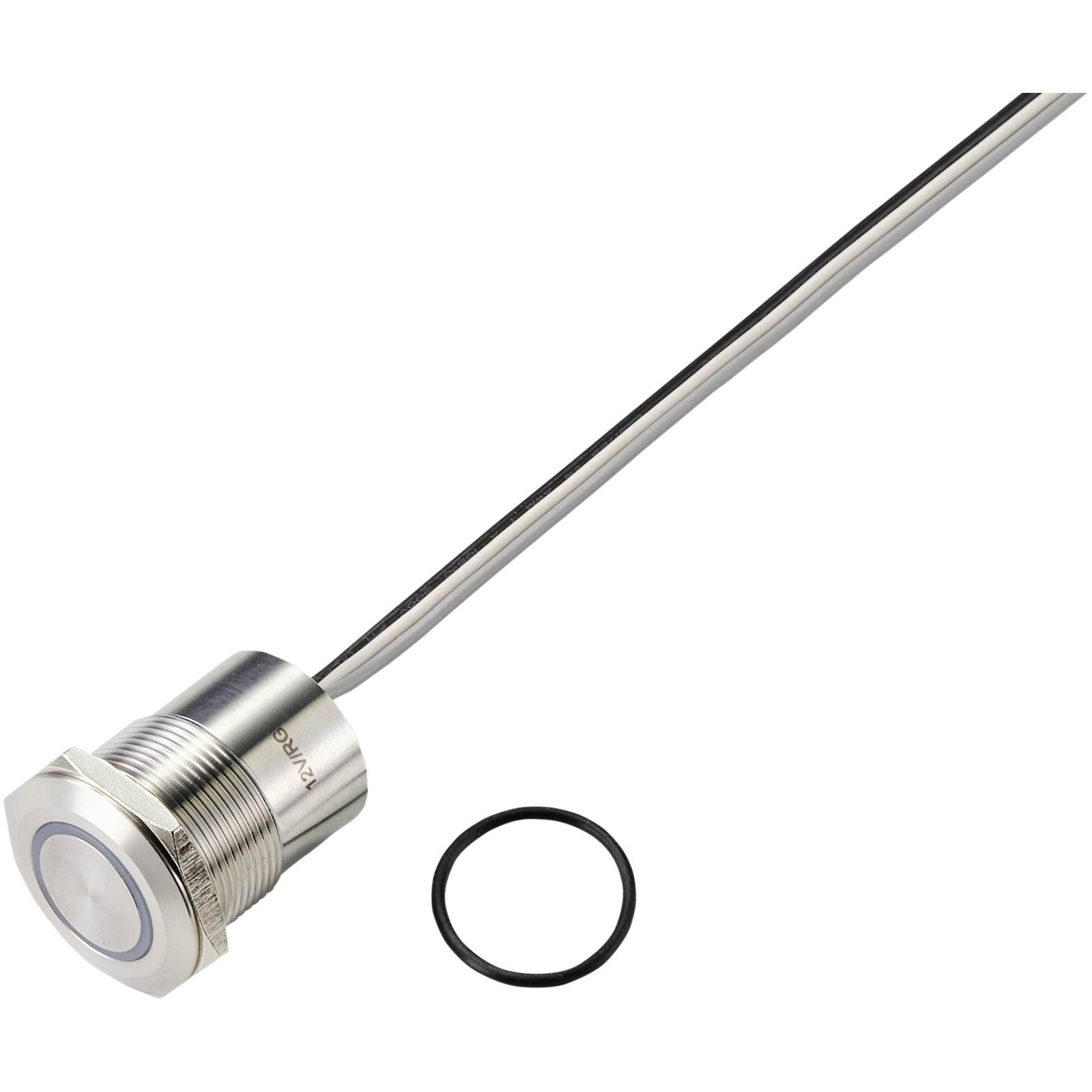

TruComponents 782721 Pushbutton ,Panel Mount,Off/On,NO/NC,Solder,IP65

The TruComponents TC-9554800 is a panel mount pushbutton switch featuring an Off/On latch configuration with NO/NC contacts and a solder connection. It is rated for 24 V and 0.5 A, suitable for applications requiring durable controls, with a green-red illuminated touch switch interface suitable for various industrial and commercial applications. With an IP65 rating, it ensures protection against dust and water, making it ideal for use in harsh environments.

Type	Pushbutton
Contact Configuration	1 x Off/On
Switch Function	latch
Current Rating	500mA
Mounting	Panel
Illumination	Red
(Ø)	25mm
Actuating Force	0N
Board thickness (max.)	8mm
Bulb Type	LED (monochrome)
Button Diameter	13.5mm
Casing/button colour	Stainless steel
Colour	Green, Red
Connection	Open end cable
Contact Resistance	20mO
Dim	(Ø) 25mm
Electrical lifespan	50,000,000 cycles
Front panel cut-out	22mm
Insulation Resistance	600VDC 10MO
IP Rating	IP65
Lighting Type	Circular lighting 1.2mm
Material	Stainless steel
Maximum Temperature	55°C
Min. temperature	-25°C
Misc Attribute 1	PNP output, LED operating voltage 12 V
Misc Attribute 2	TC-9554800
Recess Diameter	22mm
Switch/button features	capacitive
Switching current (inductive)	0.5A
Switching Voltage	24V
