TruComponents 782720 Pushbutton ,Panel Mount,Off/(On),NO/NC,Solder,IP65

TruComponents
Order Code:

78-2720

Brand: TruComponents MPN: 782720 EAN-13: 4064161189192
Qty Unit Price (Ex VAT)
1+ £21.65
5+ £21.14
10+ £20.65
25+ £20.18
50+ £19.73
100+ £19.30
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
192 in stock, despatched in 4 working days

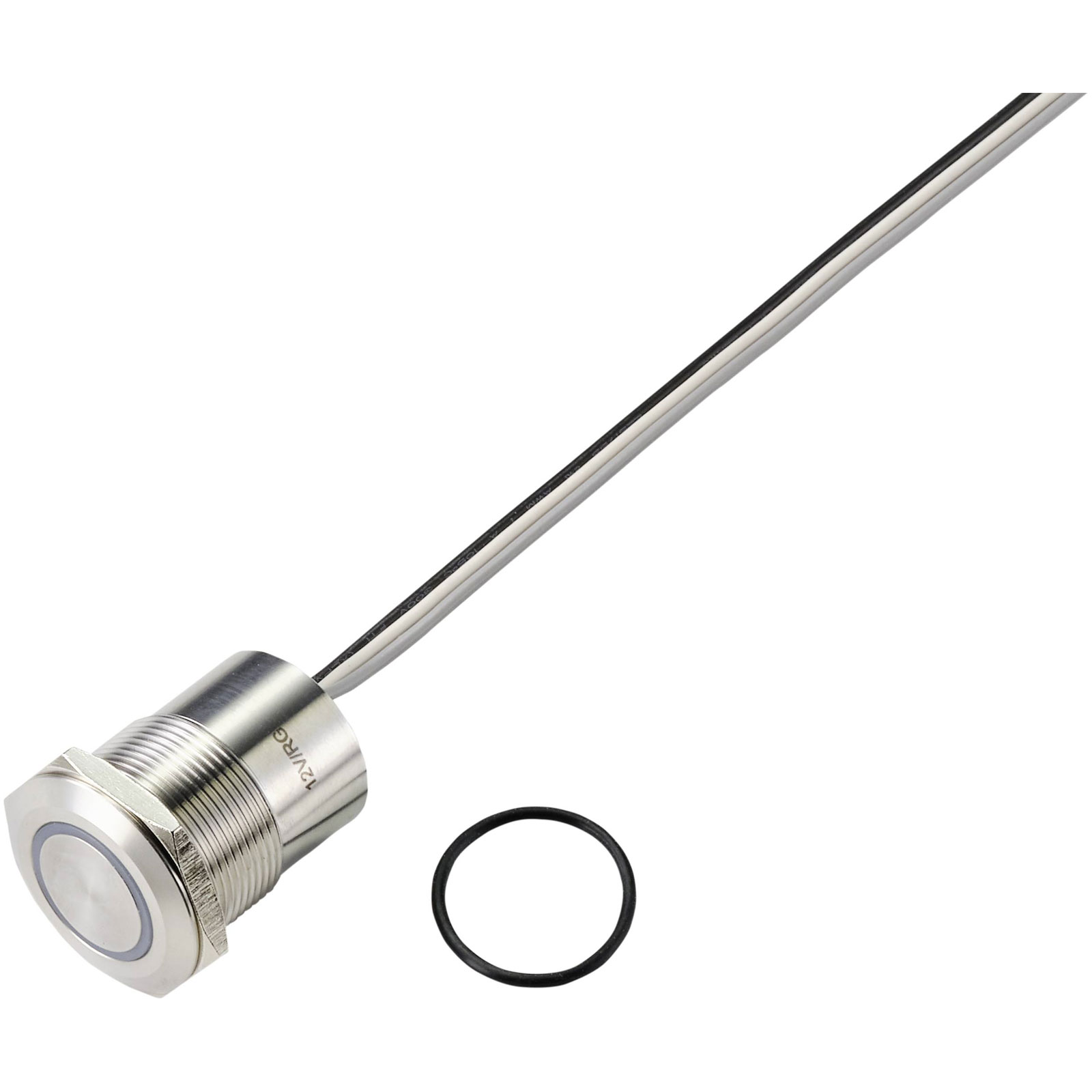

TruComponents manufactures the TC-9554796 touch button, a panel mount switch designed for industrial and commercial applications. It features a momentary Off/(On) action with a NO/NC configuration, supporting a voltage of 24 V and a current of 0.5 A. The pushbutton is IP65 rated, offers green and red illumination, and is ideal for environments requiring robust and reliable operation.
Type Pushbutton
Contact Configuration 1 x Off/(On)
Switch Function momentary
Current Rating 0.5A
(Ø) 25mm
Actuating Force 0N
Board thickness (max.) 8mm
Bulb Type LED (monochrome)
Button diameter 13.5mm
Casing/button colour Stainless steel
Connection Open end cable
Contact Resistance 20mΩ
Dim (Ø) 25 mm
Electrical lifespan 50,000,000 cycles
Front panel cut-out 22mm
Insulation Resistance 600VDC 10MΩ
IP Rating IP65
Lighting type Circular lighting 1.2 mm
Material Stainless steel
Max. temperature 55°C
Min. temperature -25°C
Misc Attribute 1 PNP output, LED operating voltage 12 V
Misc Attribute 2 TC-9554796
Recess diameter 22mm
Switch/button features capacitive
Switching current (inductive) 0.5A
Switching Voltage 24V
