TruComponents 782712 Pushbutton ,Panel Mount,Off/(On),NO/NC,Solder,IP65

TruComponents
Standard range
Order Code:

78-2712

Brand: TruComponents MPN: 782712 EAN-13: 4064161171319
Qty Unit Price (Ex VAT)
1+ £7.37
5+ £7.19
10+ £7.02
25+ £6.86
50+ £6.71
100+ £6.57
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
439 in stock, despatched in 4 working days

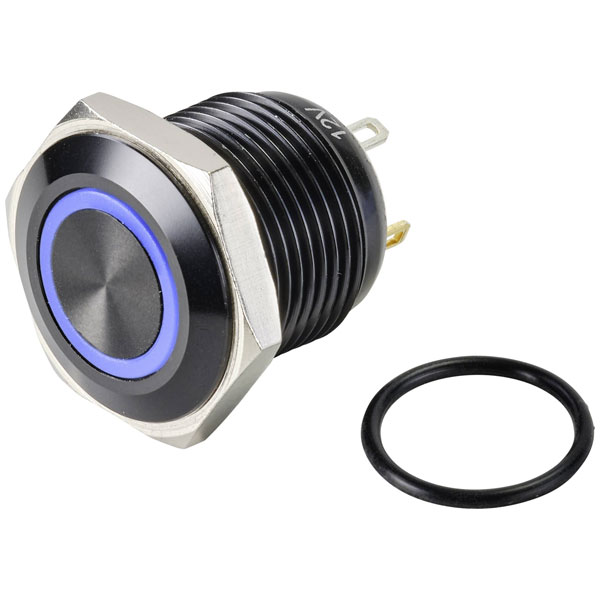

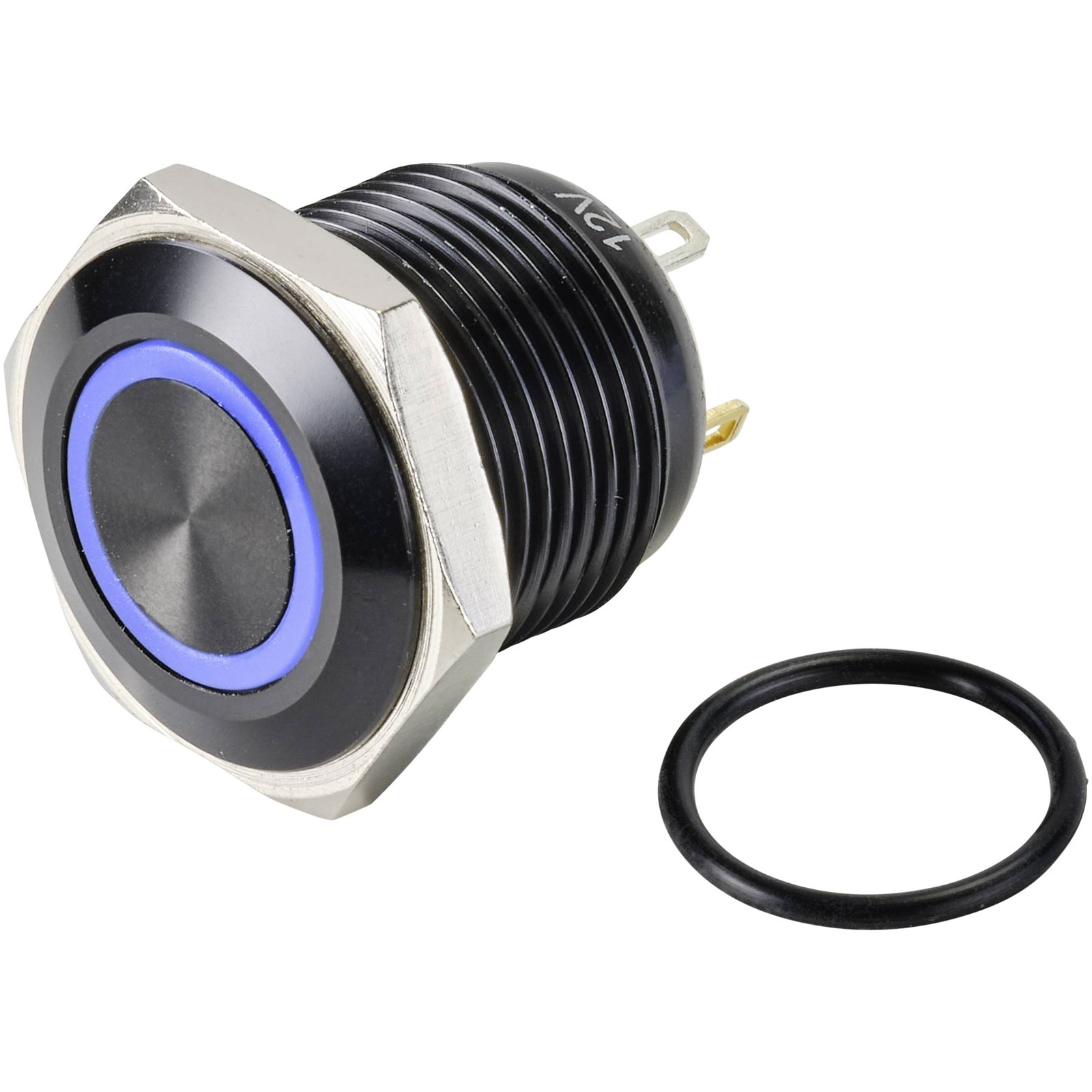

The TruComponents pushbutton, model TC-9428164, is a momentary switch with a rating of 48 V DC and 2 A, featuring a blue illuminated Off/(On) configuration. Its IP65 rating ensures suitability for environments where dust and water resistance are required. Typical applications include use in control panels, machinery, and other industrial equipment requiring reliable, temporary actuation.
Type Pushbutton
Board thickness (max.) 6mm
Bulb type LED (monochrome)
Button diameter 11.8mm
Colour Blue
Contact material Silver alloy
Contact type 1 maker
Durability 1000000
Electrical lifespan 50000
Functions momentary
IP rating IP65
Lighting type Circular lighting
Max. temperature +55°C
Min. temperature -25°C
Misc Attribute GQ16F-10E/J/B/12V/A
Recess depth 20mm
Recess diameter 16mm
RoHS-compliant Yes
Switch position 1 x Off/(On)
Switching current (max.) 2A
Switching voltage 48V DC
