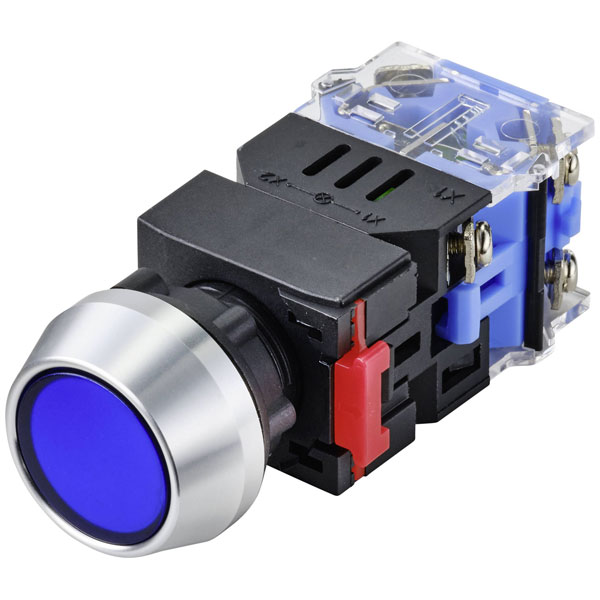

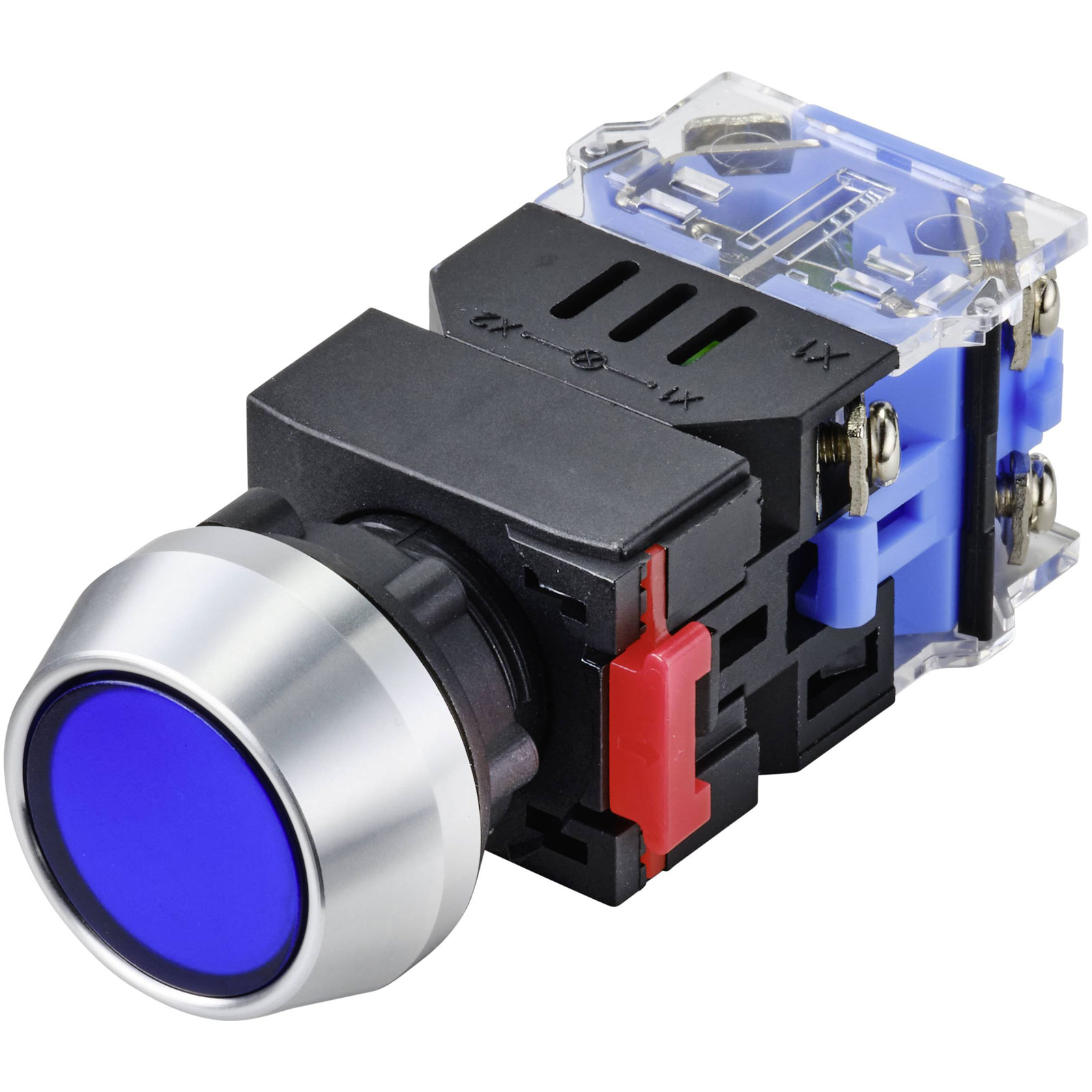

TRUCOMPONENTS 782707 Pushbutton ,Panel Mount,On/On,Scr/term,IP40

TruComponents
Extended range
Order Code:

78-2707

Brand: TruComponents MPN: 782707 EAN-13: 4064161171227
Qty Unit Price (Ex VAT)
1+ £6.53
5+ £6.37
10+ £6.22
25+ £6.08
50+ £5.95
100+ £5.82
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderPlease contact us for lead time

TruComponents manufactures the TC-9428128 LAS0-L-11Z/B/12V pushbutton switch, a panel mount on/on switch with an IP40 rating. It features a voltage rating of 250 V and a current rating of 5 A, with a latching switch action and blue illumination. This switch is suitable for applications requiring reliable control in environments with moderate protection from dust and moisture.
Type Pushbutton
Board thickness (max.) 5mm
Bulb type LED (monochrome)
Button diameter 24mm
Colour Blue
Contact material Silver alloy
Durability 1000000
Electrical lifespan 50000
Functions latch
IP rating IP40
Lighting type Area illumination
Max. temperature +55°C
Min. temperature -25°C
Misc Attribute LAS0-L-11Z/B/12V
Recess depth 72mm
Recess diameter 22mm
Switch position 1 x Off/On
Switching current (max.) 5A
Switching voltage 250V
