TruComponents 782698 Pushbutton ,Panel Mount,Off/(On),Scr/term,IP40

TruComponents
Order Code:

78-2698

Brand: TruComponents MPN: 782698 EAN-13: 4064161171111
Qty Unit Price (Ex VAT)
1+ £4.52
5+ £4.42
10+ £4.31
25+ £4.22
50+ £4.12
100+ £4.03
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
334 in stock, despatched in 4 working days

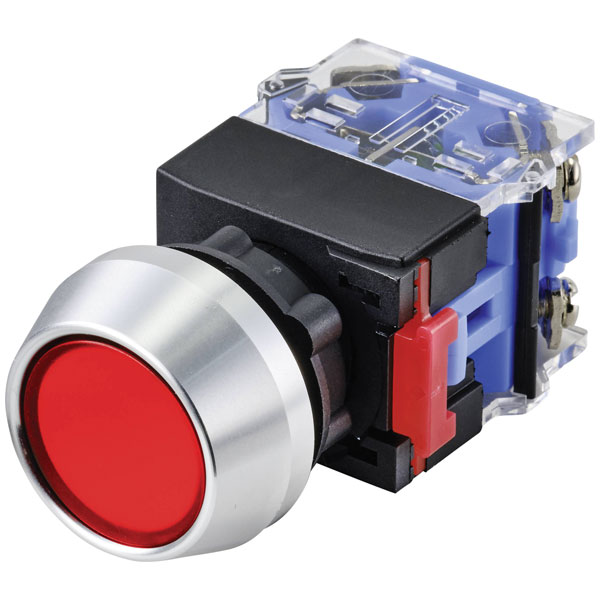

TruComponents offers the TC-9428084 LAS0-L-11/R pushbutton switch, designed for panel mounting with an Off/(On) momentary action. It is rated for 250 V and 5 A, with an IP40 protection rating, making it suitable for general indoor use. Typical applications include use in control panels or equipment where temporary activation is required.
Type Pushbutton
Current Rating 5A
Voltage Rating 250V
Switch Function momentary
Board thickness (max.) 5mm
Button diameter 24mm
Casing/button colour Red
Contact Material Silver alloy
Durability 1000000
Electrical lifespan 50000
IP Rating IP40
Lighting type None
Max. temperature +55°C
Min. temperature -25°C
Misc Attribute LAS0-L-11/R
Recess depth 55mm
Recess diameter 22mm
Switch position 1 x Off/(On)
