TruComponents 782695 Pushbutton ,Panel Mount,Off/On,NO/NC,Solder,IP40

TruComponents
Order Code:

78-2695

Brand: TruComponents MPN: 782695 EAN-13: 4064161171081
Qty Unit Price (Ex VAT)
1+ £4.01
5+ £3.91
10+ £3.82
25+ £3.73
50+ £3.65
100+ £3.57
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 4 weeks

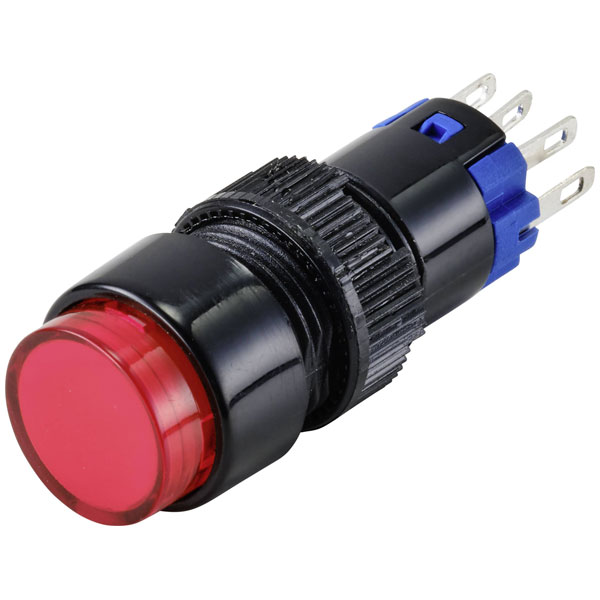

TruComponents offers the TC-9428072 LAS2Y-11Z/R/12V pushbutton switch, suitable for panel mounting. This switch is rated for 250 V and 3 A, featuring an Off/On latch action with NO/NC contact configuration. Its robust design is ideal for various industrial and commercial applications, though it is protected by an IP40 rating.
Type Pushbutton
Board thickness (max.) 8mm
Bulb Type LED (monochrome)
Button diameter 12mm
Colour Red
Contact Material Silver alloy
Durability 200000
Electrical lifespan 50000
Functions latch
IP Rating IP40
Lighting type Area illumination
Max. temperature +55°C
Min. temperature -25°C
Misc Attribute LAS2Y-11Z/R/12V
Recess depth 28mm
Recess diameter 12mm
Switch position 1 x Off/On
Switching current (max.) 3A
Switching Voltage 250V
