TruComponents 782694 Pushbutton ,Panel Mount,Off/(On),NO/NC,Solder,IP40

TruComponents
Order Code:

78-2694

Brand: TruComponents MPN: 782694 EAN-13: 4064161171074
Qty Unit Price (Ex VAT)
2+ £3.56
5+ £3.47
10+ £3.39
25+ £3.31
50+ £3.24
100+ £3.17
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
224 in stock, despatched in 4 working days

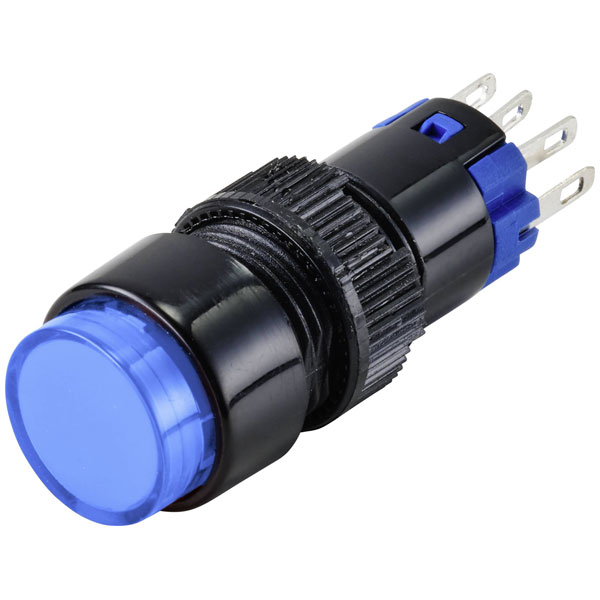

The TruComponents TC-9428068 is a panel mount pushbutton switch designed for momentary Off/(On) action, featuring a blue button. It is rated for 250 V and 3 A, with a NO/NC switch configuration and IP40 protection. This pushbutton is suitable for control panels and equipment where temporary circuit activation is required.
Type Pushbutton
Board thickness (max.) 8mm
Bulb Type LED (monochrome)
Button diameter 12mm
Colour Blue
Contact Material Silver alloy
Durability 200000
Electrical lifespan 50000
Functions momentary
IP Rating IP40
Lighting type Area illumination
Max. temperature +55°C
Min. temperature -25°C
Misc Attribute LAS2Y-11/B/12V
Recess depth 28mm
Recess diameter 12mm
Switch position 1 x Off/(On)
Switching current (max.) 3A
Switching Voltage 250V
