TruComponents 782692 Pushbutton ,Panel Mount,Off/(On),NO/NC,Solder,IP40

TruComponents
Order Code:

78-2692

Brand: TruComponents MPN: 782692 EAN-13: 4064161171050
Qty Unit Price (Ex VAT)
2+ £3.53
5+ £3.45
10+ £3.37
25+ £3.29
50+ £3.22
100+ £3.15
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
273 in stock, despatched in 4 working days

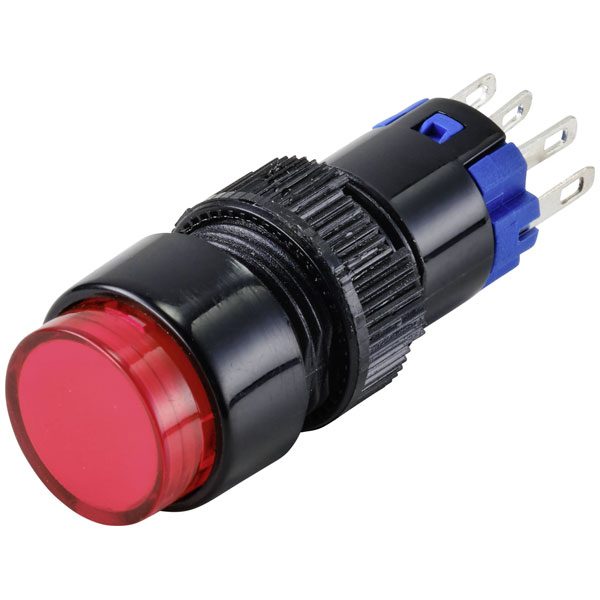

TruComponents manufactures the LAS2Y-11/R/12V pushbutton switch, offering an Off/(On) momentary action with a red non-illuminated button. The pushbutton is panel-mounted and features a 250 V, 3 A rating, with an IP40 protection class, including NO/NC contacts for versatile connectivity. It is suitable for applications requiring a reliable control interface, such as industrial machines and electronic projects.
Type Pushbutton
Contact Configuration 1 x Off/(On)
Switch Function momentary
Current Rating 3A
Board thickness (max.) 8mm
Bulb Type LED (monochrome)
Button diameter 12mm
Colour Red
Contact Material Silver alloy
Durability 200000
Electrical lifespan 50000
IP Rating IP40
Lighting type Area illumination
Max. temperature +55°C
Min. temperature -25°C
Misc Attribute LAS2Y-11/R/12V
Recess depth 28mm
Recess diameter 12mm
Switching Voltage 250V
