TruComponents 782673 Pushbutton ,Panel Mount,Off/(On),SPDT-NO,PushOn,IP67

TruComponents
Order Code:

78-2673

Brand: TruComponents MPN: 782673 EAN-13: 4064161149783
Qty Unit Price (Ex VAT)
1+ £10.49
5+ £10.24
10+ £10.00
25+ £9.77
50+ £9.55
100+ £9.35
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
294 in stock, despatched in 4 working days

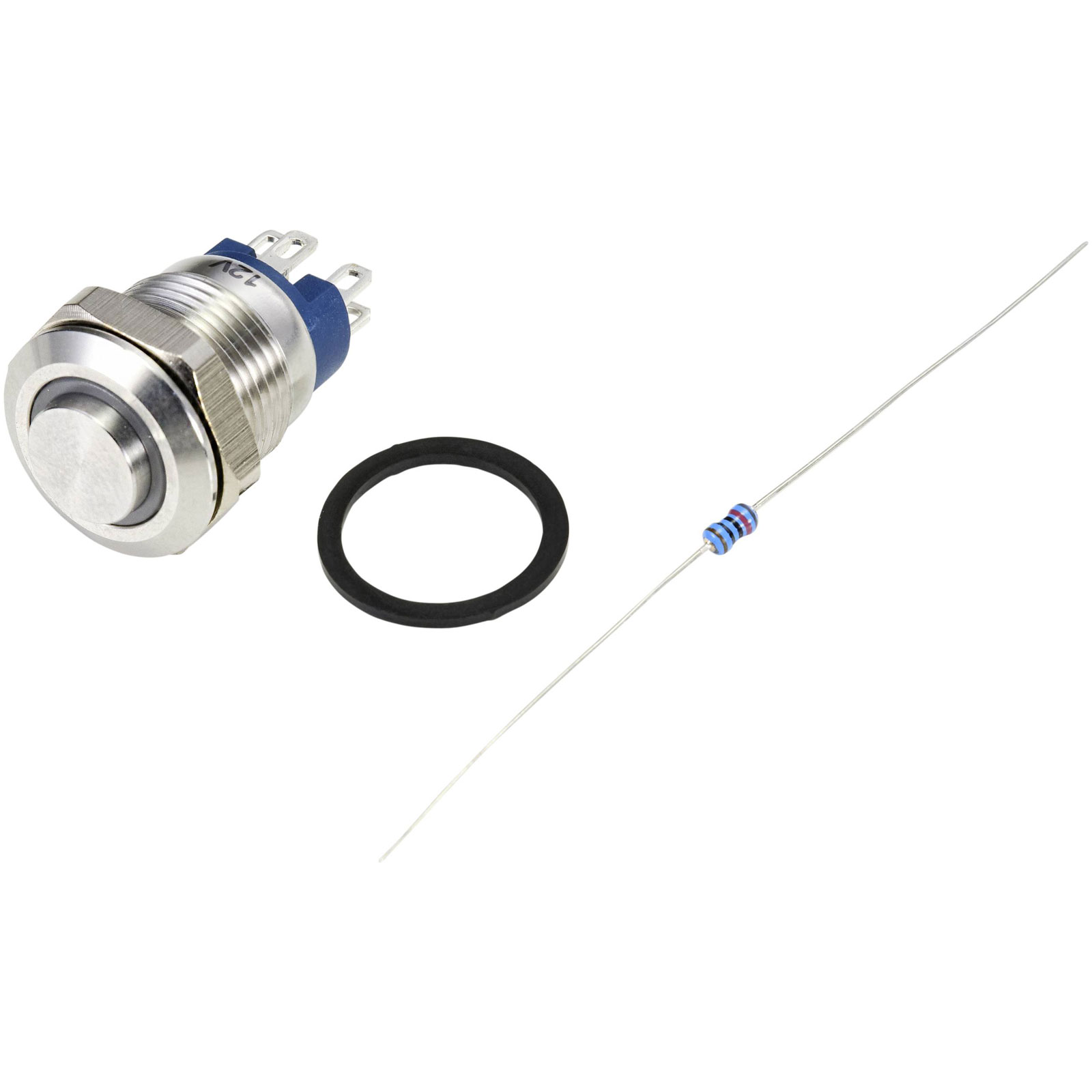

The TruComponents TC-9219012 pushbutton is a panel mount, momentary switch with a SPDT-NO configuration. It is rated for 48 V AC and 2 A, featuring RGB illumination and an IP67 protection rating, making it suitable for environments requiring waterproof components. Typical applications include control panels and machinery where temporary activation is needed.
Type Pushbutton
Contact Configuration 1 x Off/On
Switch Function Contact
Current Rating 150mA
(Ø) 26mm
Axle Ø 6mm
Casing/button colour Black-white
Connection Socket
Contact Material Steel nickel plated
Contact Resistance ≤ 0.05Ω (initial)
Dim (Ø x L) 26 mm x 50 mm
Electrical lifespan 10000 cycles
Length 50mm
Lighting type None
Max. temperature 70°C
Min. temperature -21°C
Misc Attribute SR26E4712-R-50
Plastic free packaging Plastic-free packaging
Switching angle 12 x 30 °
Switching Voltage 250V
Width 26mm
