TruComponents 782672 Pushbutton ,Panel Mount,Off/(On),SPDT-NO,PushOn,IP67

TruComponents
Order Code:

78-2672

Brand: TruComponents MPN: 782672 EAN-13: 4064161149776
Qty Unit Price (Ex VAT)
1+ £10.92
5+ £10.66
10+ £10.41
25+ £10.17
50+ £9.95
100+ £9.73
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
258 in stock, despatched in 4 working days

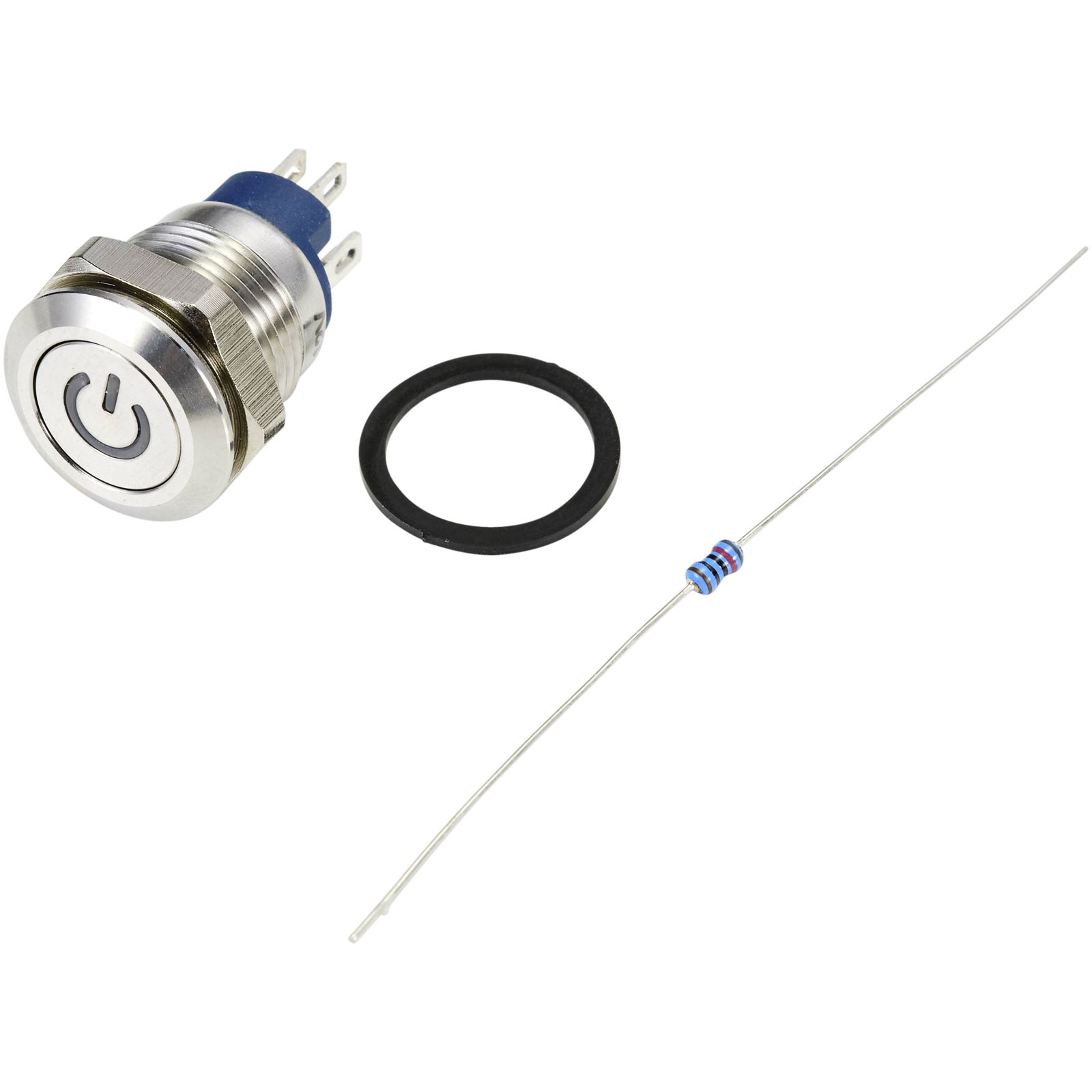

The TruComponents TC-9219008 is a panel mount pushbutton switch designed for off/(on) SPDT-NO operation. It features an RGB illumination type, is rated for 48 V AC at 2 A, and offers an IP67 protection rating, making it suitable for use in environments requiring robust sealing against dust and water ingress. Typical applications include control panels and equipment that require reliable momentary switch action with visual indication.
Type Pushbutton
Contact Configuration 1 x Off/On
Switch Function Contact
Current Rating 150mA
(Ø) 26mm
Axle Ø 6mm
Casing/button colour Black-white
Connection Socket
Contact Material Steel nickel plated
Contact Resistance ≤ 0.05Ω (initial)
Dim (Ø x L) 26 mm x 29 mm
Electrical lifespan 10000 cycles
Length 29mm
Lighting type None
Max. temperature 70°C
Min. temperature -21°C
Misc Attribute SR26A4-4-3-R-29
Plastic free packaging Plastic-free packaging
Switching angle 12 x 30 °
Switching Voltage 250V
Width 26mm
