TruComponents 782647 Pushbutton ,Panel Mount,Off/(On),SPST,Solder,IP65

TruComponents
Standard range
Order Code:

78-2647

Brand: TruComponents MPN: 782647 EAN-13: 4064161301136
Qty Unit Price (Ex VAT)
1+ £7.47
5+ £7.29
10+ £7.13
25+ £6.96
50+ £6.81
100+ £6.66
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
241 in stock, despatched in 4 working days

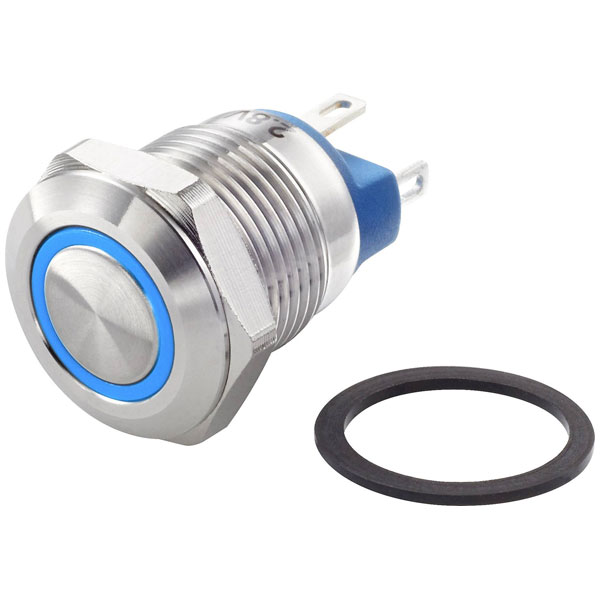

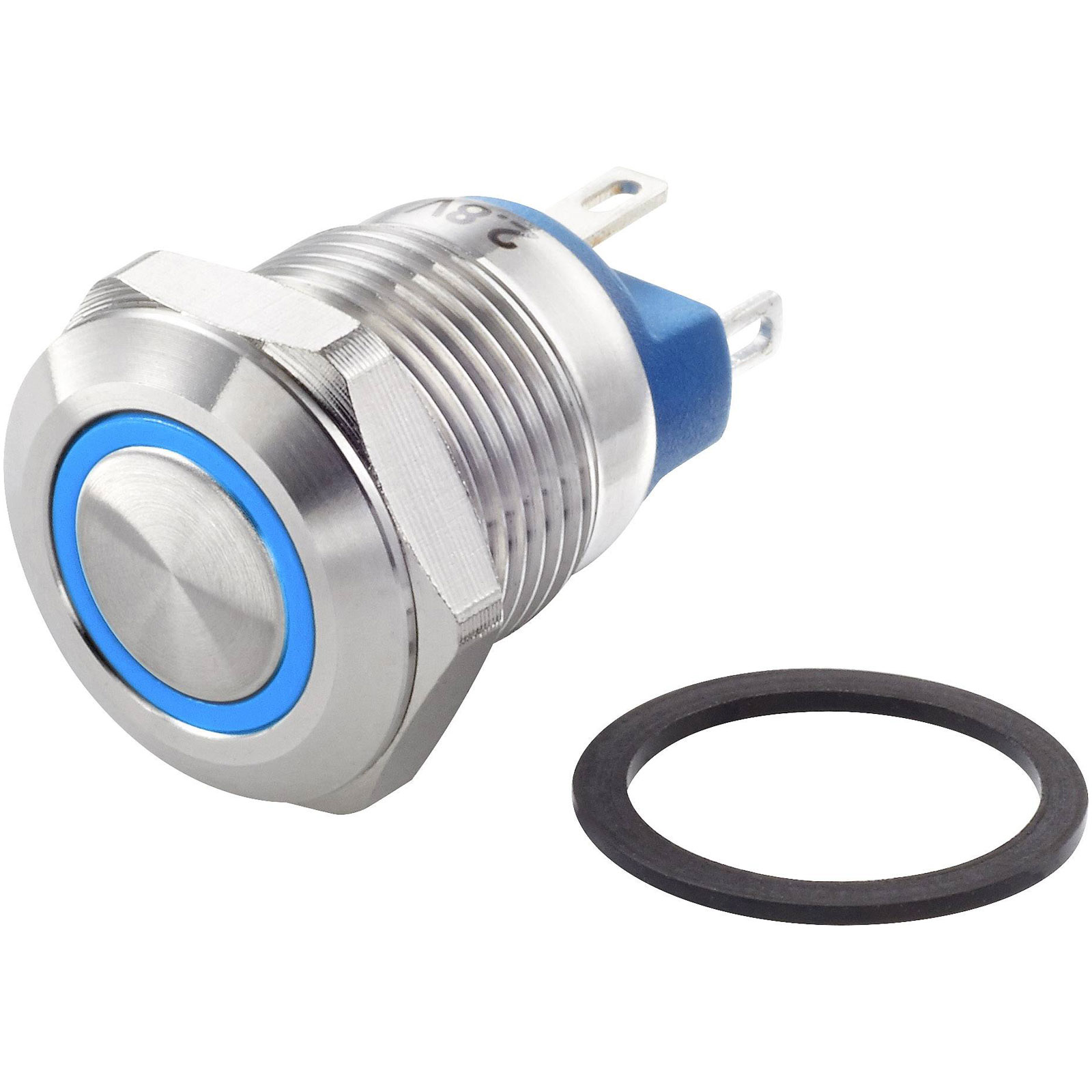

The TruComponents pushbutton is a tamper-proof, panel mount switch with an IP65 rating, featuring a momentary Off/(On) single-pole single-throw configuration. It supports up to 48 V DC and a current rating of 2 A, and the pushbutton is illuminated in blue. This type of switch is ideal for secure control panels and outdoor applications due to its durability and weather resistance.
Type Pushbutton
Connection Solder pins
Contact resistance ≤50mΩ
Electrical lifespan ≥10,000 cycles
Max. temperature 70°C
Min. temperature -10°C
Misc Attribute TC-12193716
RoHS-compliant Yes
Switch position 1 x On/On
Switching current (max.) 4A
