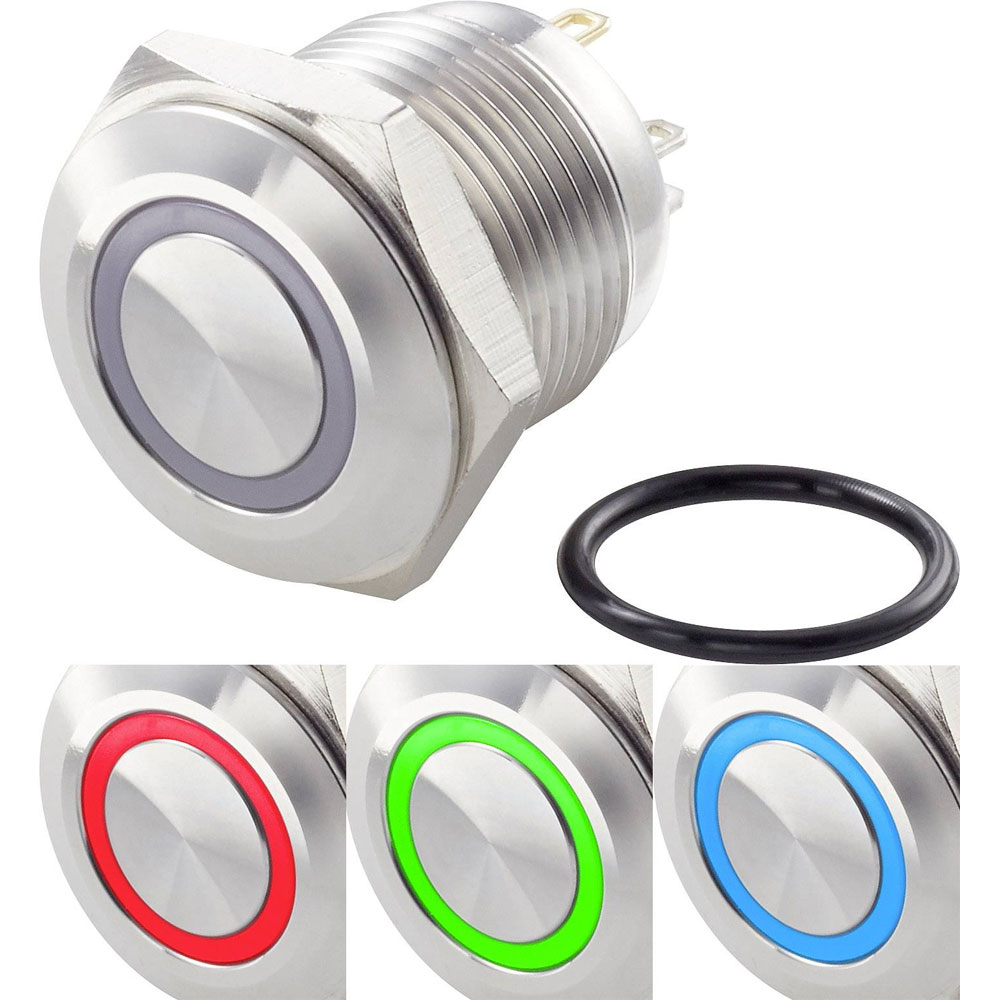

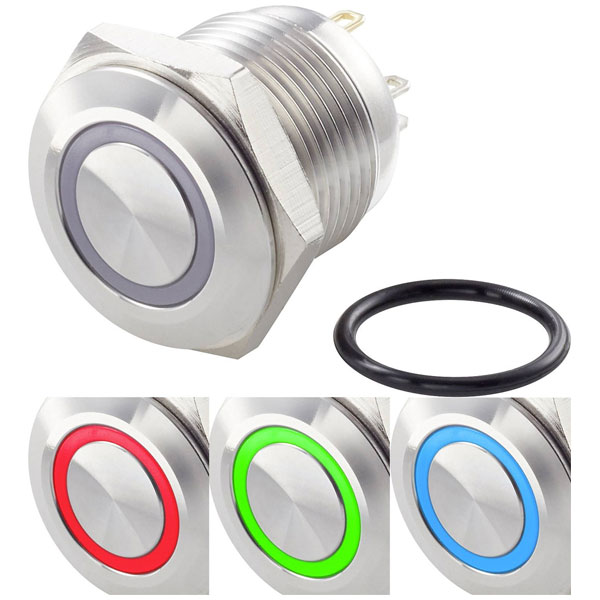

TruComponents 782638 Pushbutton ,Panel Mount,Off/(On),SPST,Solder,IP65

TruComponents manufactures the TC-7494612 TC-GQ16F-10E/41RGB, a tamper-proof pushbutton switch. It features an Off/(On) momentary action, with a voltage rating of 48 V DC and a current rating of 2 A. The switch is ideal for use in environments that require rugged and secure control, such as industrial machinery and outdoor equipment.

Type	Pushbutton
Contact Configuration	SPST
Switch Function	Off-(On)
Current Rating	1A
Mounting	Panel
Illumination	RGB
Panel Cutout Dimensions	22
Cable Length	0.50m
Connection	Open end cable
Factory colour	Black
IP Rating	IP65
Material	Polyphenylene
Max. temperature	90°C
Min. temperature	-30°C
Misc Attribute	SE-VIW-M16-H
Plastic free packaging	Plastic-free packaging
Power	50W
Switching Voltage	250V AC
Thread Size	M16
