TruComponents 782630 Pushbutton ,Panel Mount,Off/(On),NO/NC,Solder

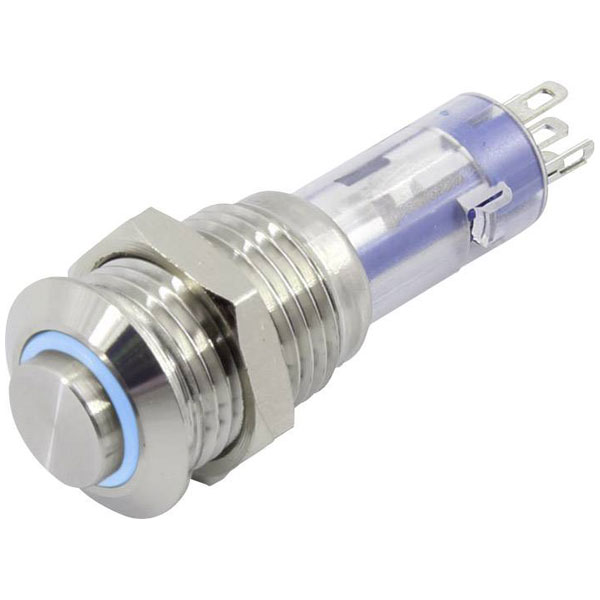

The TruComponents TC-6647576 is a panel mount pushbutton switch with an off/(on) momentary action, designed for applications requiring a straightforward, temporary switch mechanism. It features a blue illuminated button with a voltage rating of 48 V and a current rating of 2 A, offering a reliable NO/NC configuration. Commonly used in industrial controls and equipment interfaces, it supports solder connections for secure installation.

Type	Pushbutton
Contact Configuration	2 x On/On/On
Switch Function	Off-(On)
Current Rating	1.5A
Mounting	Panel
Illumination	Blue
Panel Cutout Dimensions	12
Connection	Print
Dim	(L x W x H) 25 x 8 x 18.5 mm
Height	18.5mm
Length	25mm
Maximum Temperature	+55°C
Min. temperature	-20°C
Misc Attribute	6259488
Operation type	top
Switch postions	3
Switching Voltage	250V AC
Width	8mm
