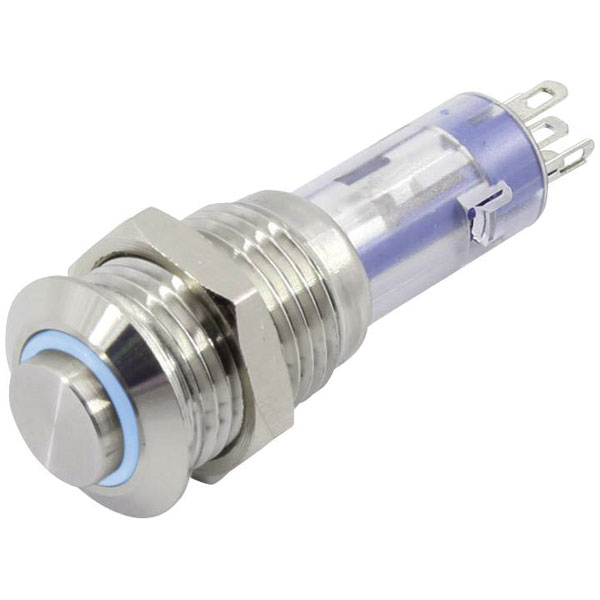

TruComponents 782628 Pushbutton ,Panel Mount,Off/(On),NO/NC,Solder

TruComponents manufactures the TC-6647568 pushbutton switch, designed for panel mounting with an Off/(On) momentary action. The switch features a voltage rating of 48 V and a current rating of 2 A, with a NO/NC configuration and a blue illumination. It is typically used in electronic devices where temporary circuit closure is required, such as control panels and machinery interfaces.

Type	Pushbutton
Contact Configuration	SPDT NO/NC
Switch Function	2 change-overs
Current Rating	5A
Mounting	Panel
Illumination	Blue
Panel Cutout Dimensions	12
Button Ø	28mm
Connection	Solder tag
IP Rating	IP65
Lighting Type	None
Maximum Temperature	+55°C
Min. temperature	-25°C
Misc Attribute	TC-GQ22-A-22TSB203
Print motif	Arrow symbol
Switching Voltage	250V
Unlocking mechanism	Turn
