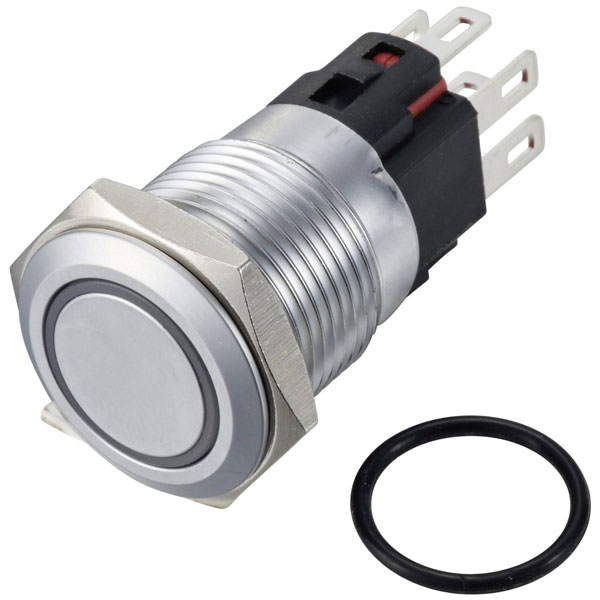

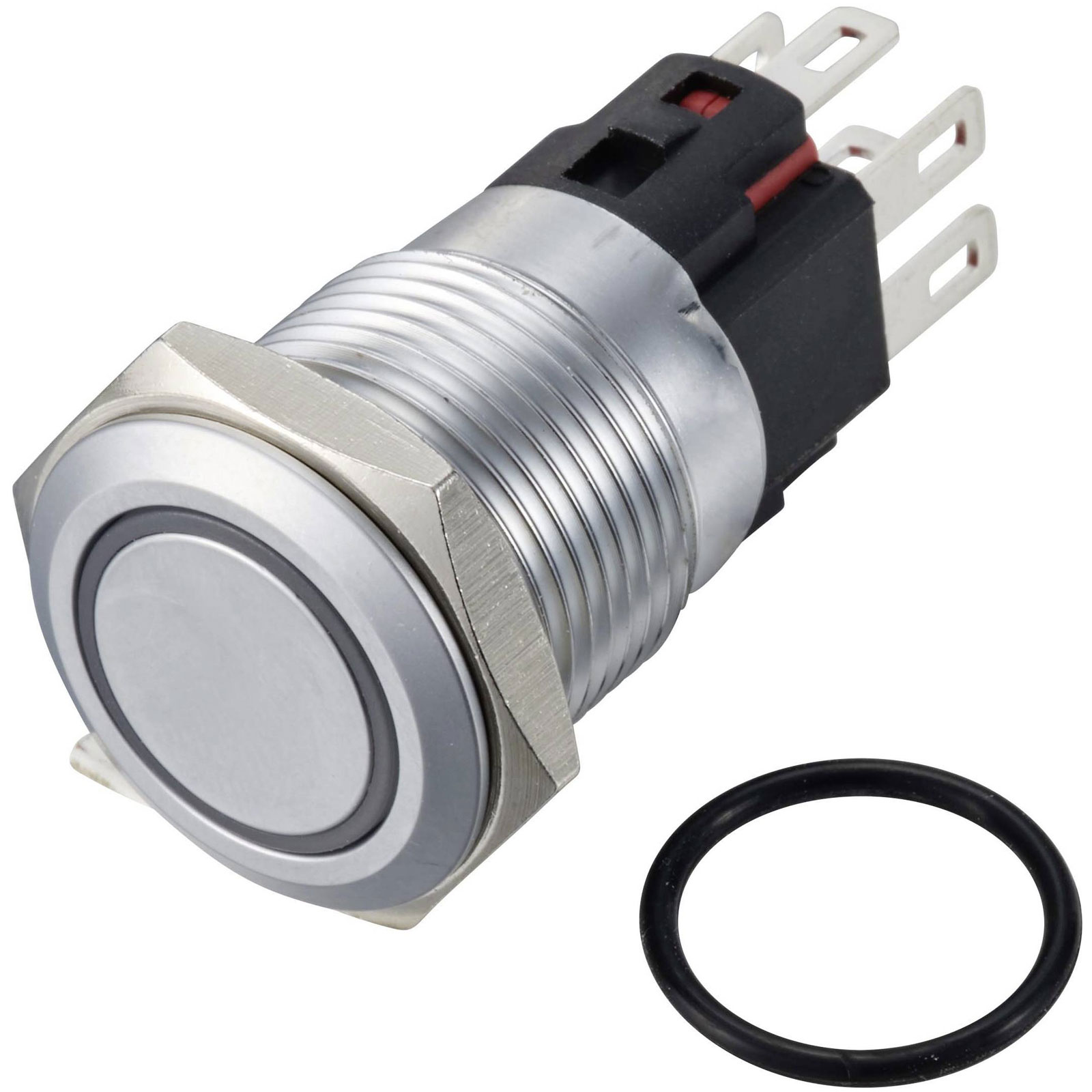

TruComponents 782615 Pushbutton ,Panel Mount,Off/(On),SPST,Solder,IP65

TruComponents offers the TC-12647532 pushbutton switch, featuring a 250 V AC, 3 A rating with an Off/(On) single-pole single-throw configuration. The chrome-plated brass switch is IP65 rated for dust and water resistance and includes RGB illumination. It is ideal for panel mount applications in environments requiring robust, momentary action switches.

Type	Pushbutton
Contact Configuration	1 x Off/On
Switch Function	latch
Current Rating	20A
Mounting	Panel
Illumination	RGB
Panel Cutout Dimensions	12
Bulb Type	Light bulb
Colour	Red
Connection	Type C CEE 7/16 plug 6.3mm
Factory colour	Silver
Front panel thickness	max. 2mm
IP Rating	IP65
Lighting Type	Area illumination
Maximum Temperature	55°C
Min. temperature	-25°C
Misc Attribute	TC-R13-61L2 ILLUMINATED RED
Number of Poles	1
Print motif	None
Recess Diameter	12.2mm
Switching Voltage	12V DC
