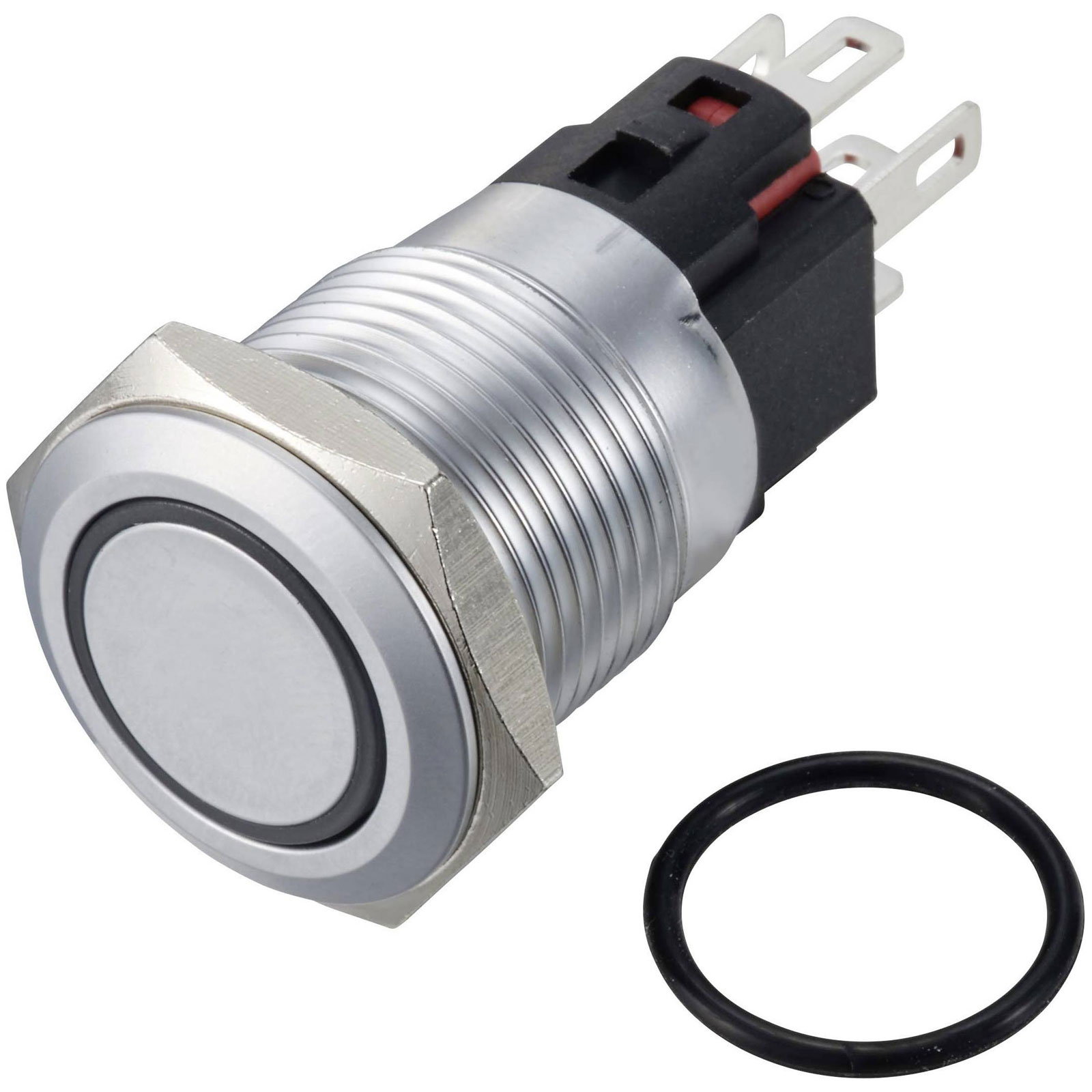

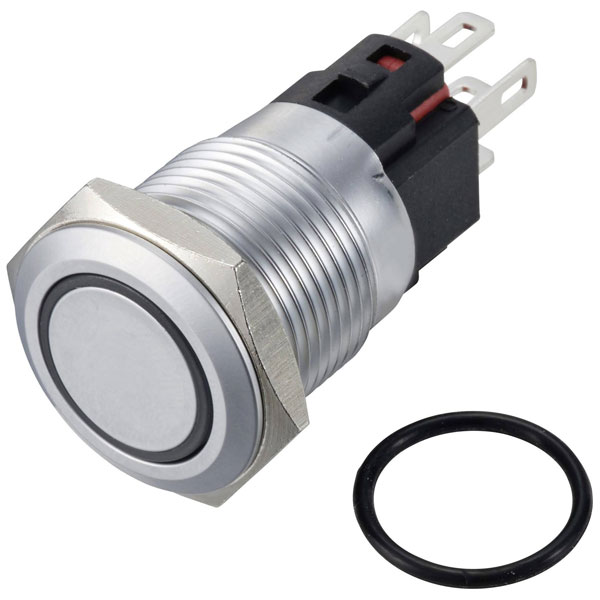

TruComponents 782614 Pushbutton ,Panel Mount,Off/(On),SPST,Solder,IP65

The TruComponents TC-12647528 is a panel mount pushbutton switch with an Off/(On) SPST configuration, suitable for applications requiring a 250 V AC, 3 A rating. Featuring an IP65 protection rating and a green latch, it is ideal for use in environments where moisture and dust resistance are necessary. Commonly applied in control panels and automation systems, this chrome-plated brass switch ensures reliable performance.

Type	Pushbutton
Contact Configuration	2 x Off/On/On
Switch Function	latch
Current Rating	30A
Mounting	Panel
Illumination	Green
Panel Cutout Dimensions	12
Connection	Type C CEE 7/16 plug 6.3mm
Front panel thickness	max 6mm
IP Rating	IP65
Lighting Type	None
Maximum Temperature	55°C
Min. temperature	-25°C
Misc Attribute	TC-A3-20B-SQ
Number of pins	2
Print motif	Headlight symbol
Recess Diameter	12.2mm
Switching Voltage	12V DC
