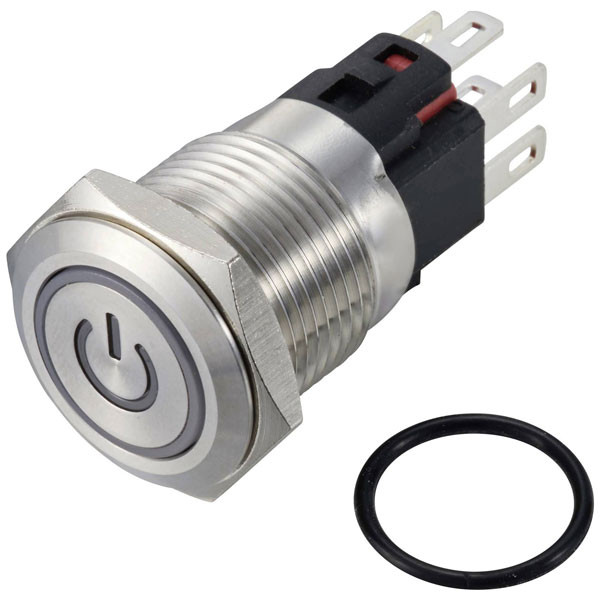

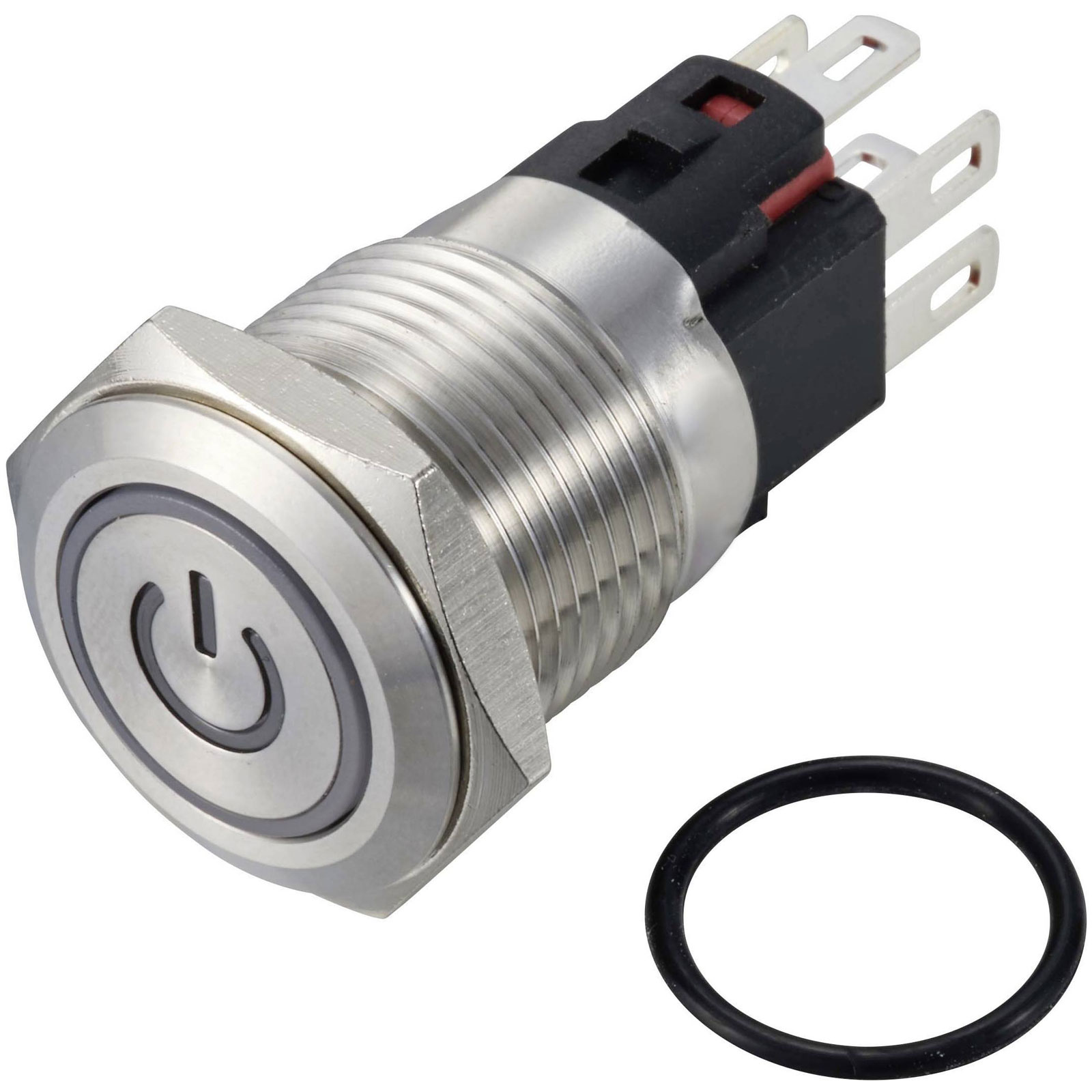

TruComponents 782581 Pushbutton ,Panel Mount,Off/(On),SPDT,Solder,IP65

The TruComponents TC-12647396 is a panel mount pushbutton switch with an Off/(On) SPDT configuration. It features a voltage rating of 250 V AC and a current rating of 3 A, offering IP65 protection and a stainless steel build for enhanced durability. Typical applications include industrial control panels and other environments requiring reliable momentary switching.

Type	Pushbutton
Contact Configuration	2 x Off/On
Switch Function	Off-(On)
Current Rating	300mA
Mounting	Panel
Voltage Rating	250v
Panel Cutout Dimensions	12
Colour	RGB
Connection	Print
CS	2.5mm
Dim	(L x W) 9 mm x 3.6 mm
IP Rating	IP65
Length	9mm
Maximum Temperature	55°C
Min. temperature	-25°C
Misc Attribute	YSS-1203
Operation type	Tappet
Switch postions	1
Switching Voltage	6V DC
Width	3.6mm
