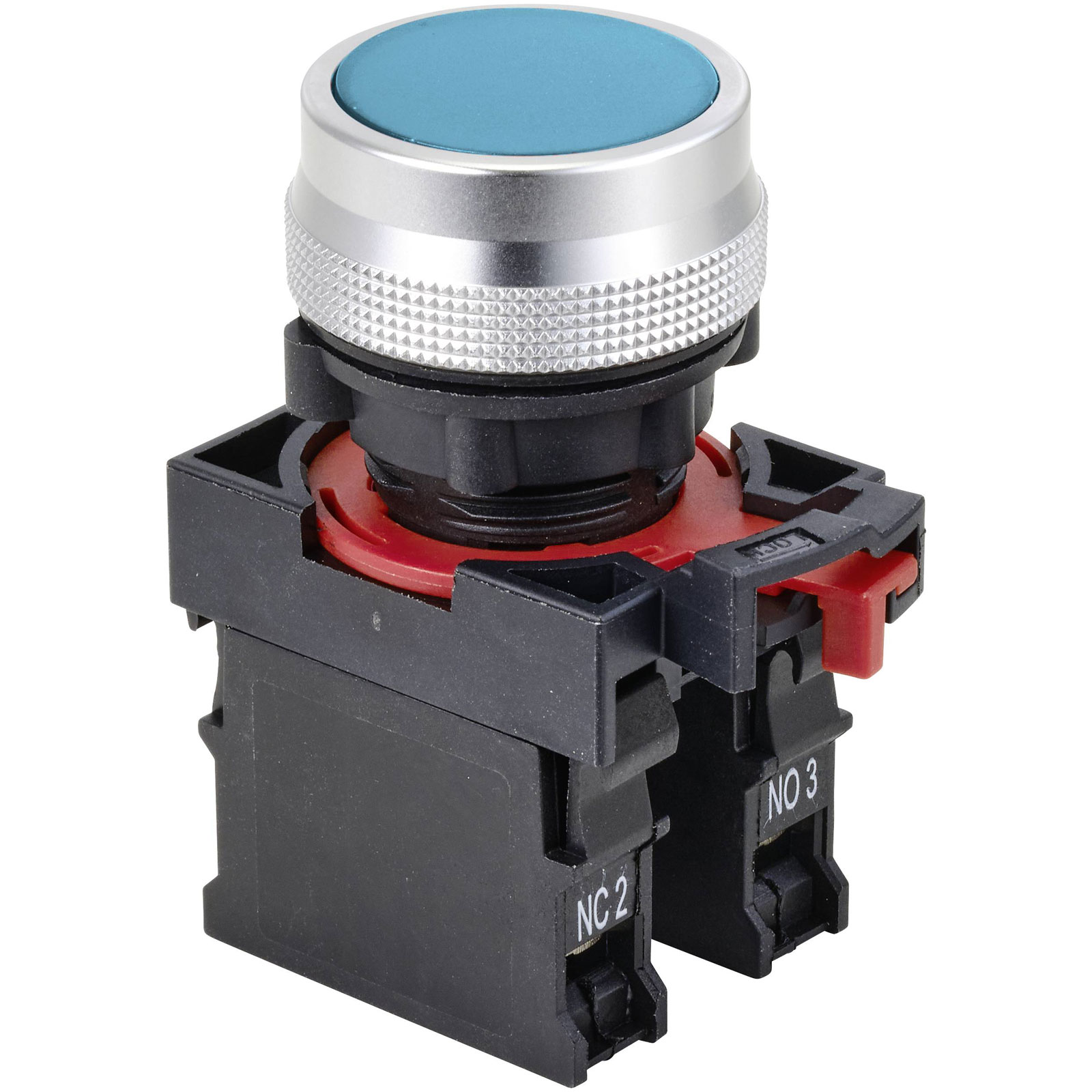

TruComponents 782159 Pushbutton ,Panel Mount,Off/(On),NO/NC,Scr/term,IP40

TruComponents
Order Code:

78-2159

Brand: TruComponents MPN: 782159 EAN-13: 4064161206363
Qty Unit Price (Ex VAT)
1+ £4.80
5+ £4.69
10+ £4.58
25+ £4.48
50+ £4.38
100+ £4.28
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
3 in stock, despatched in 4 working days

The TruComponents pushbutton switch TC-10091024 is a panel mount switch designed for momentary action with an off/(on) configuration. It features a voltage rating of 250 V and a current rating of 5 A, with a switch configuration of NO/NC and an IP40 protection rating. Typical applications include use in control panels and equipment requiring user input for short-term activation.
Type Pushbutton
Current Rating 5A
Voltage Rating 250V
Switch Function momentary
Board thickness (max.) 5mm
Casing/button colour Blue
Connection Screw
Contact Material Silver alloy
Electrical lifespan 50000
Front panel cut-out 22mm
Insulation Resistance ≥ 100 MΩ
IP Rating IP40
Lighting type None
Material Plastic
Max. temperature +55°C
Min. temperature -25°C
Misc Attribute ONPOW26-11/B
Plastic free packaging Plastic-free packaging
Recess depth 49.2mm
Switch position 1 x On/(On)
