TruComponents 782158 Pushbutton ,Panel Mount,Off/(On),NO/NC,Scr/term,IP40

TruComponents
Order Code:

78-2158

Brand: TruComponents MPN: 782158 EAN-13: 4064161206356
Qty Unit Price (Ex VAT)
1+ £4.80
5+ £4.69
10+ £4.58
25+ £4.48
50+ £4.38
100+ £4.28
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
242 in stock, despatched in 4 working days

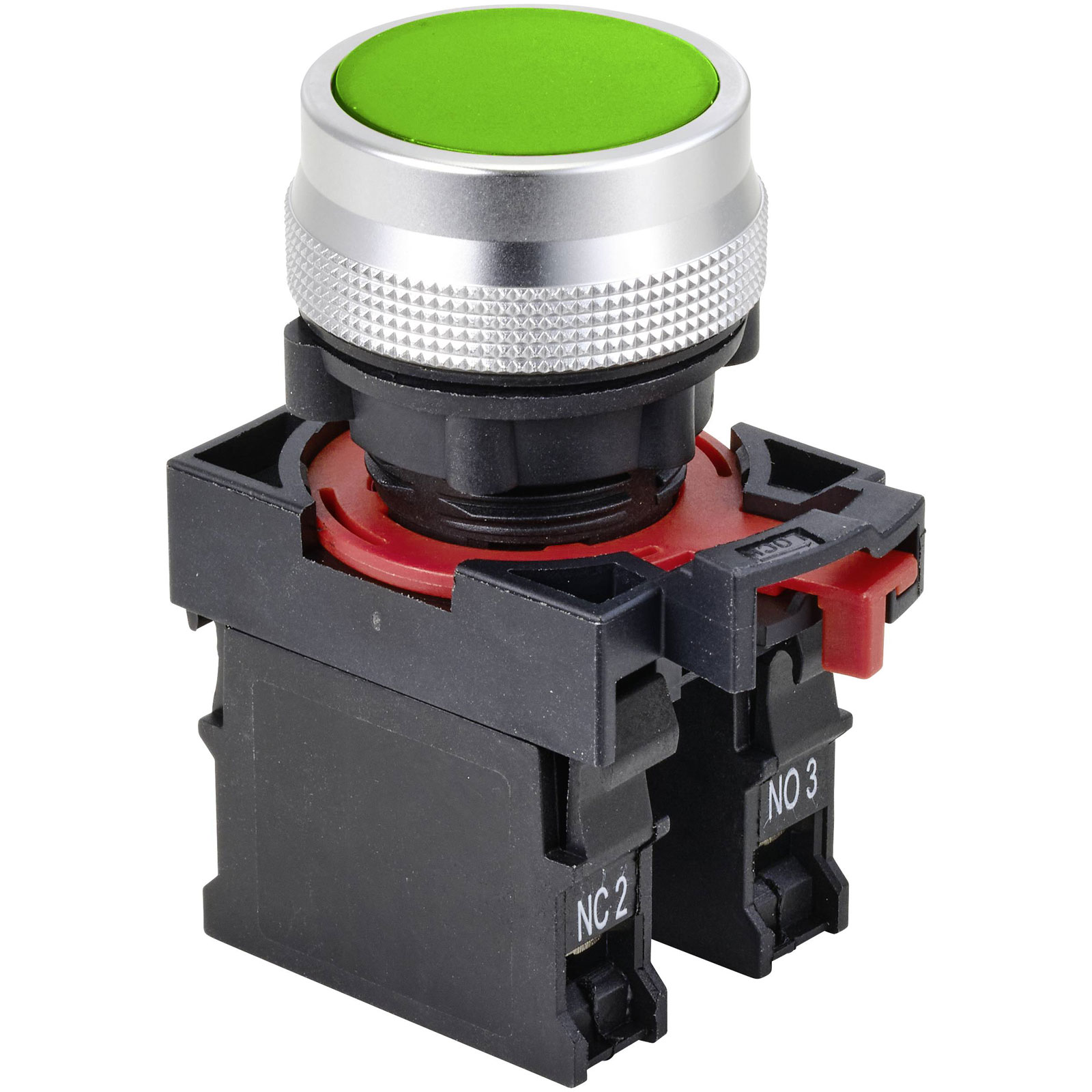

The TruComponents pushbutton switch, model TC-10091020, features a momentary On/(On) action with NO/NC configuration. It is rated for 250 V and 5 A with an IP40 protection rating, making it suitable for indoor panel mount applications. This switch is ideal for use in electronics and machinery controls where a temporary contact is needed.
Type Pushbutton
Current Rating 5A
Voltage Rating 250V
Switch Function momentary
Board thickness (max.) 5mm
Casing/button colour Green
Connection Screw
Contact Material Silver alloy
Electrical lifespan 50000
Front panel cut-out 22mm
Insulation Resistance ≥ 100 MΩ
IP Rating IP40
Lighting type None
Material Plastic
Max. temperature +55°C
Min. temperature -25°C
Misc Attribute ONPOW26-11/G
Plastic free packaging Plastic-free packaging
Recess depth 49.2mm
Switch position 1 x On/(On)
