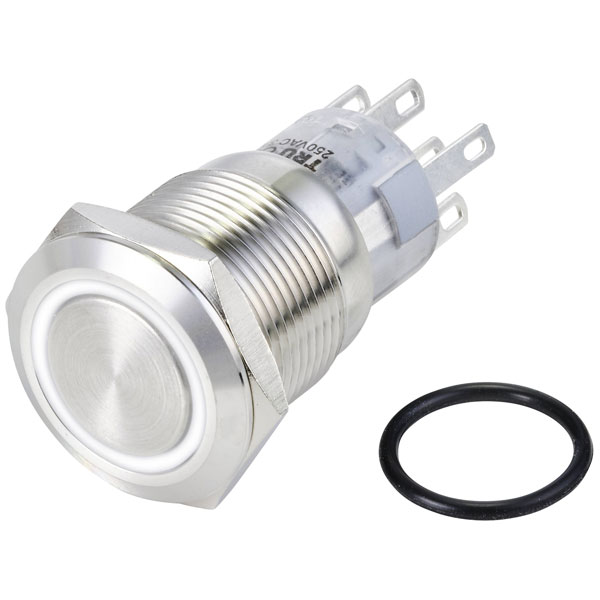

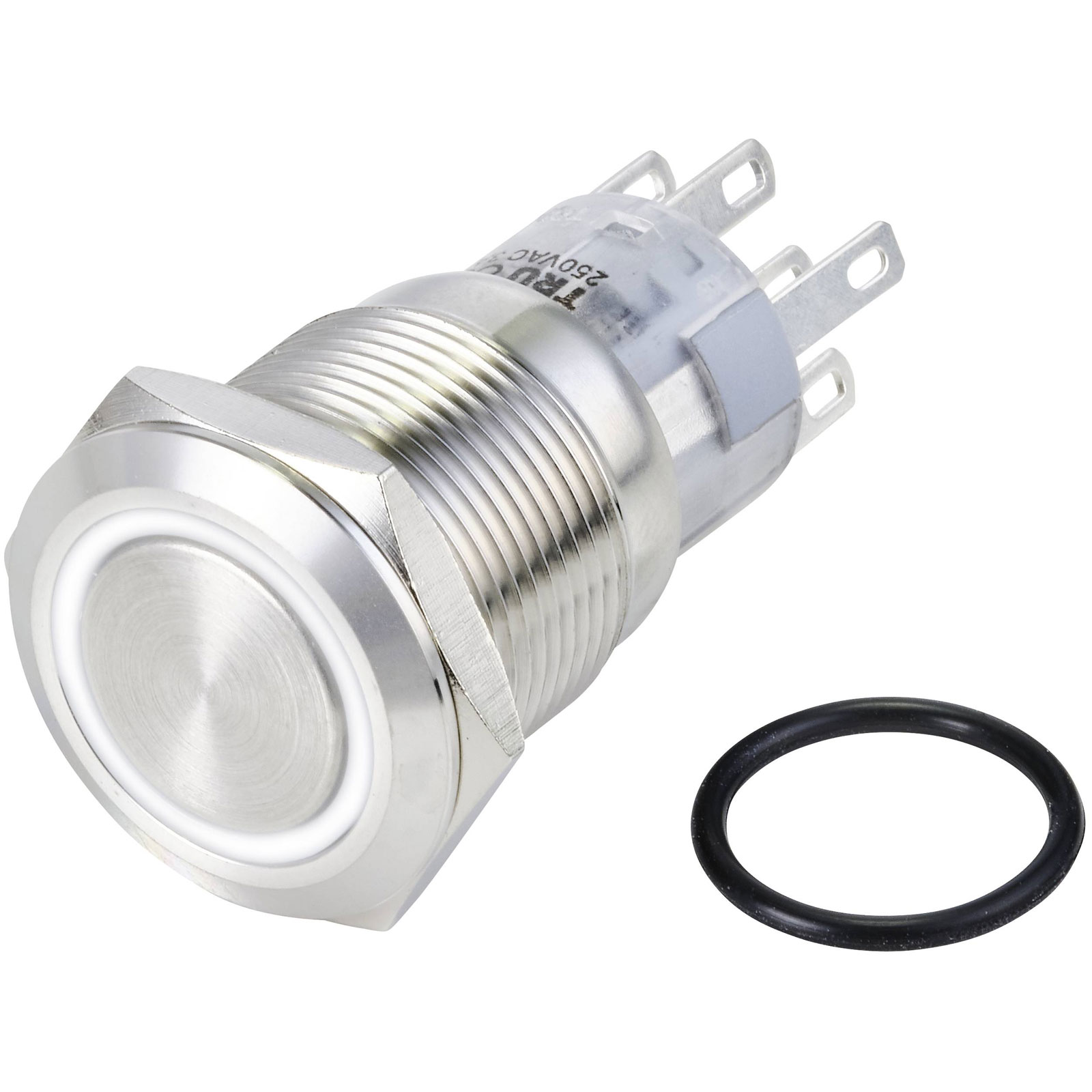

TruComponents 782150 Pushbutton ,Panel Mount,On/(On),DPDT,Solder,IP65

TruComponents
Order Code:

78-2150

Brand: TruComponents MPN: 782150 EAN-13: 4064161206271
Qty Unit Price (Ex VAT)
1+ £14.98
5+ £14.63
10+ £14.29
25+ £13.96
50+ £13.65
100+ £13.36
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
164 in stock, despatched in 4 working days

TruComponents offers the TC-10090988, a tamper-proof panel mount pushbutton with a DPDT switch configuration. It features an On/On latching action, is rated for 250 V AC and 3 A, and boasts an IP65 protection rating. Designed with tamper-proof capabilities, it is ideal for use in industrial control panels and outdoor equipment.
Type Pushbutton
Contact Configuration 2 x On/On
Switch Function latch
Current Rating 3A
Board thickness (max.) 10mm
Bulb Type LED (monochrome)
Casing/button colour Stainless steel
Colour White
Connection Soldering
Contact Material Silver alloy
Contact Resistance ≤ 50 mΩ
Dielectric Strength 1500 VAC
Electrical lifespan 50000
Insulation Resistance ≥100 MΩ
IP Rating IP65
Lighting type Circular lighting
Max. temperature +55°C
Min. temperature -25°C
Misc Attribute LAS1-AGQ-22ZE/W/24V/S
Plastic free packaging Plastic-free packaging
Recess depth 38.2mm
Recess diameter 20mm
Switching Voltage 250V AC
