TruComponents 782149 Pushbutton ,Panel Mount,On/(On),DPDT,Solder,IP65

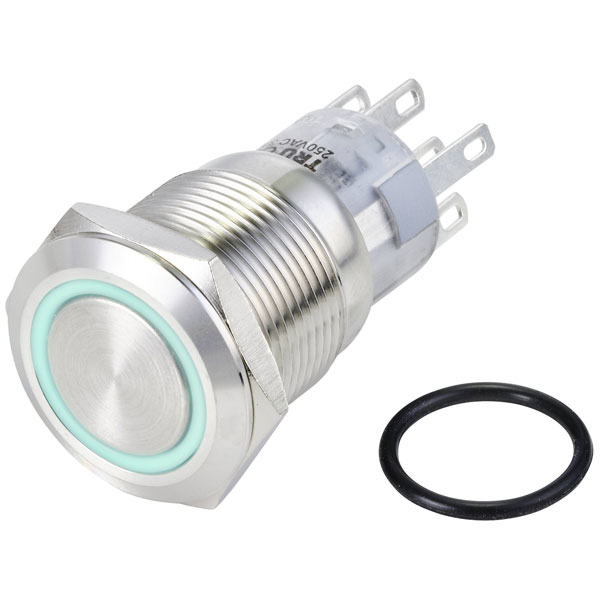

The TruComponents pushbutton, model TC-10090984, is a DPDT panel mount switch with tamper-proof features. It is rated for 250 V AC and 3 A, features a 2 x On/On latching action, and offers IP65 protection, making it suitable for harsh environments. Ideal for industrial control panels, this blue illuminated pushbutton ensures reliable operation in demanding applications.

Type	Pushbutton
Contact Configuration	2 x On/On
Switch Function	latch
Current Rating	3A
Mounting	Panel
Illumination	Blue
Panel Cutout Dimensions	20.2 dia
Board thickness (max.)	10mm
Bulb Type	LED (monochrome)
Casing/button colour	Stainless steel
Colour	Blue
Connection	Soldering
Contact Material	Silver alloy
Contact Resistance	≤ 50 mΩ
Dielectric Strength	1500 VAC
Electrical lifespan	50000
Insulation Resistance	≥100 MΩ
IP Rating	IP65
Lighting Type	Circular lighting
Max. temperature	+55°C
Min. temperature	-25°C
Misc Attribute	LAS1-AGQ-22ZE/B/24V/S
Plastic free packaging	Plastic-free packaging
Recess depth	38.2mm
Recess Diameter	20mm
Switching Voltage	250V AC
