TruComponents 782148 Pushbutton ,Panel Mount,On/(On),DPDT,Solder,IP65

TruComponents
Standard range
Order Code:

78-2148

Brand: TruComponents MPN: 782148 EAN-13: 4064161206257
Qty Unit Price (Ex VAT)
1+ £16.86
5+ £16.45
10+ £16.07
25+ £15.71
50+ £15.36
100+ £15.02
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
26 in stock, despatched in 4 working days

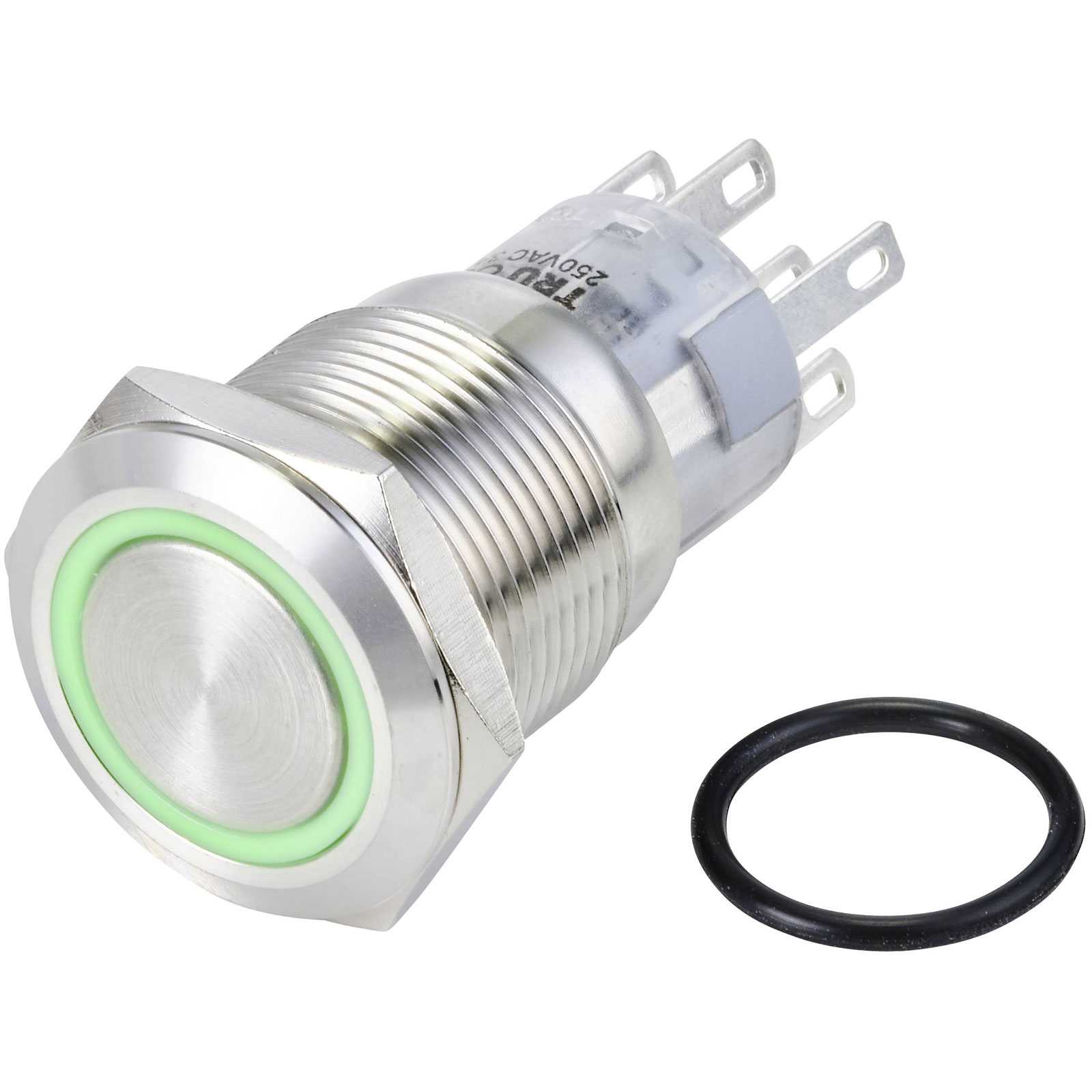

The TruComponents pushbutton is a tamper-proof, panel mount switch with a DPDT configuration and a rating of 250 V AC and 3 A. It features a green illuminated button and is designed for reliable operation with an IP65 protection rating. Ideal for industrial and commercial applications requiring secure and durable operation, such as machinery controls or automation systems.
Type Pushbutton
Board thickness (max.) 10mm
Bulb type LED (monochrome)
Casing/button colour Stainless steel
Colour Green
Connection Soldering
Contact material Silver alloy
Contact resistance ≤ 50 mΩ
Dielectric strength 1500 VAC
Electrical lifespan 50000
Functions latch
Insulation resistance ≥100 MΩ
IP rating IP65
Lighting type Circular lighting
Max. temperature +55°C
Min. temperature -25°C
Misc Attribute LAS1-AGQ-22ZE/G/24V/S
Plastic free packaging Plastic-free packaging
Recess depth 38.2mm
Recess diameter 20mm
Switch position 2 x On/On
Switching current (max.) 3A
Switching voltage 250V AC
