TruComponents 782135 Pushbutton ,Panel Mount,On/(On),SPDT,Solder,IP65

TruComponents
Order Code:

78-2135

Brand: TruComponents MPN: 782135 EAN-13: 4064161206127
Qty Unit Price (Ex VAT)
1+ £12.36
5+ £12.06
10+ £11.78
25+ £11.52
50+ £11.26
100+ £11.02
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
317 in stock, despatched in 4 working days

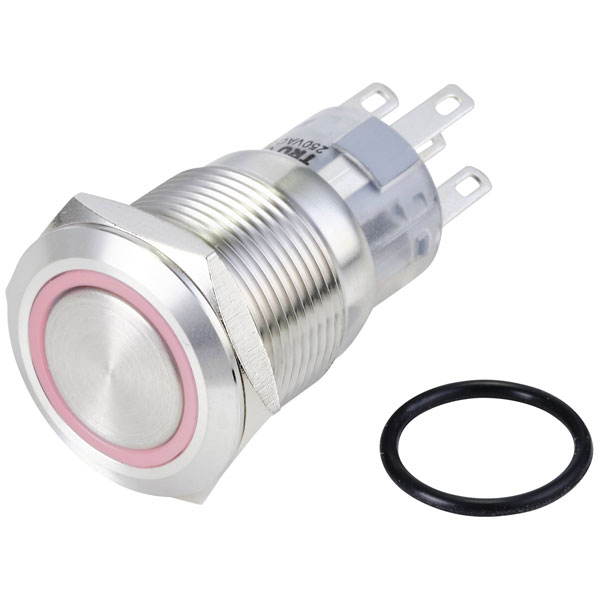

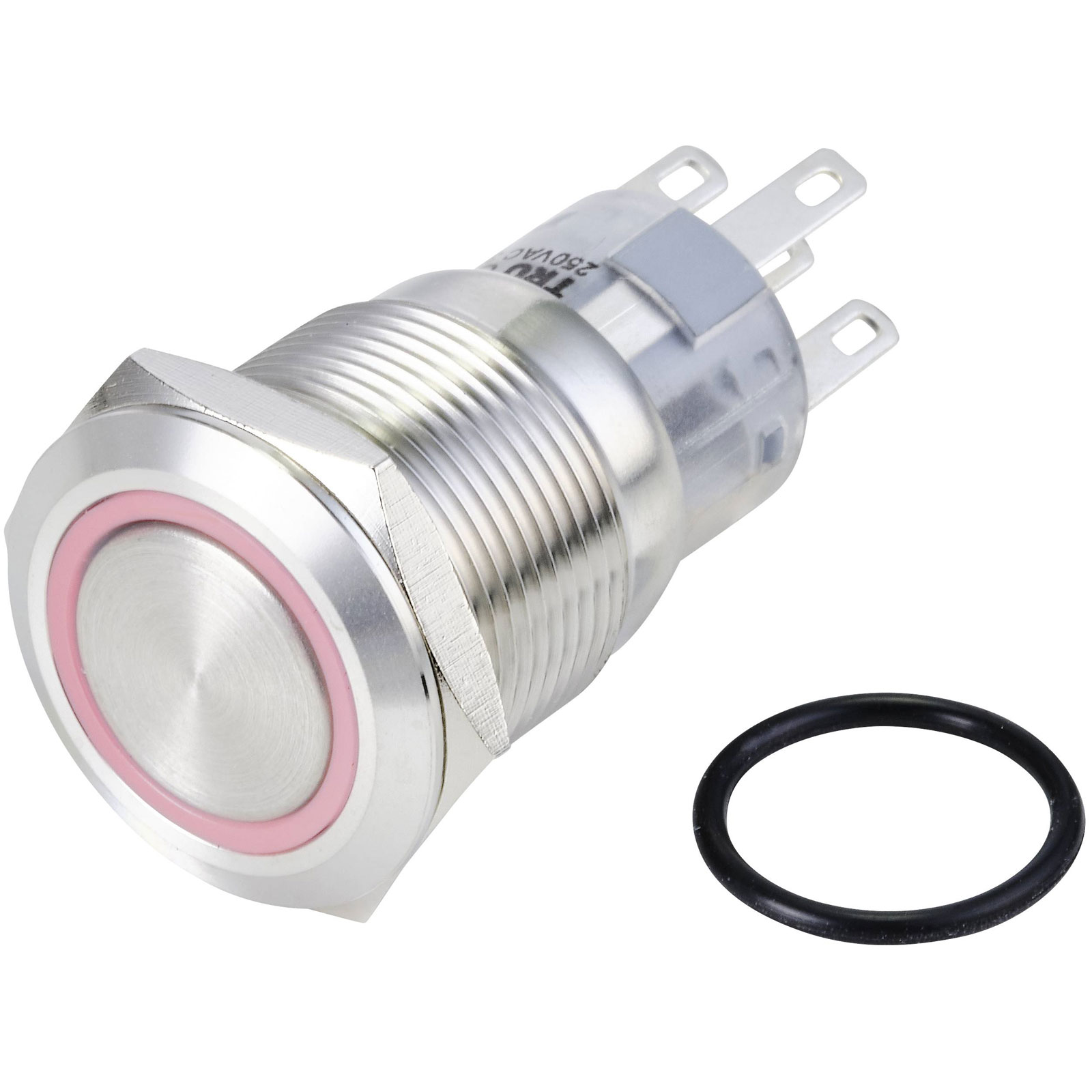

The TruComponents 78-2135 is a tamper-proof pushbutton switch designed for panel mounting, featuring an SPDT configuration. It supports a voltage rating of 250V AC and a current rating of 3A, with a momentary action and IP65 protection with a red illumination. This pushbutton is typically used in industrial or commercial applications requiring durable and reliable controls.
Type Pushbutton
Contact Configuration 1 x On/(On)
Switch Function momentary
Current Rating 3A
Board thickness (max.) 10mm
Bulb Type LED (monochrome)
Casing/button colour Stainless steel
Colour Red
Connection Soldering
Contact Material Silver alloy
Dielectric Strength 1500 VAC
Electrical lifespan 50000
Insulation Resistance ≥100 MΩ
IP Rating IP65
Lighting type Circular lighting
Max. temperature +55°C
Min. temperature -25°C
Misc Attribute LAS1-AGQ-11E/R/24V/S
Plastic free packaging Plastic-free packaging
Recess depth 38.2mm
Recess diameter 20mm
Switching Voltage 250V AC
