TruComponents 782133 Pushbutton ,Panel Mount,Off/(On),SPST,Solder,IP65

TruComponents
Order Code:

78-2133

Brand: TruComponents MPN: 782133 EAN-13: 4064161206103
Qty Unit Price (Ex VAT)
1+ £7.60
5+ £7.42
10+ £7.25
25+ £7.08
50+ £6.93
100+ £6.78
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 3 weeks

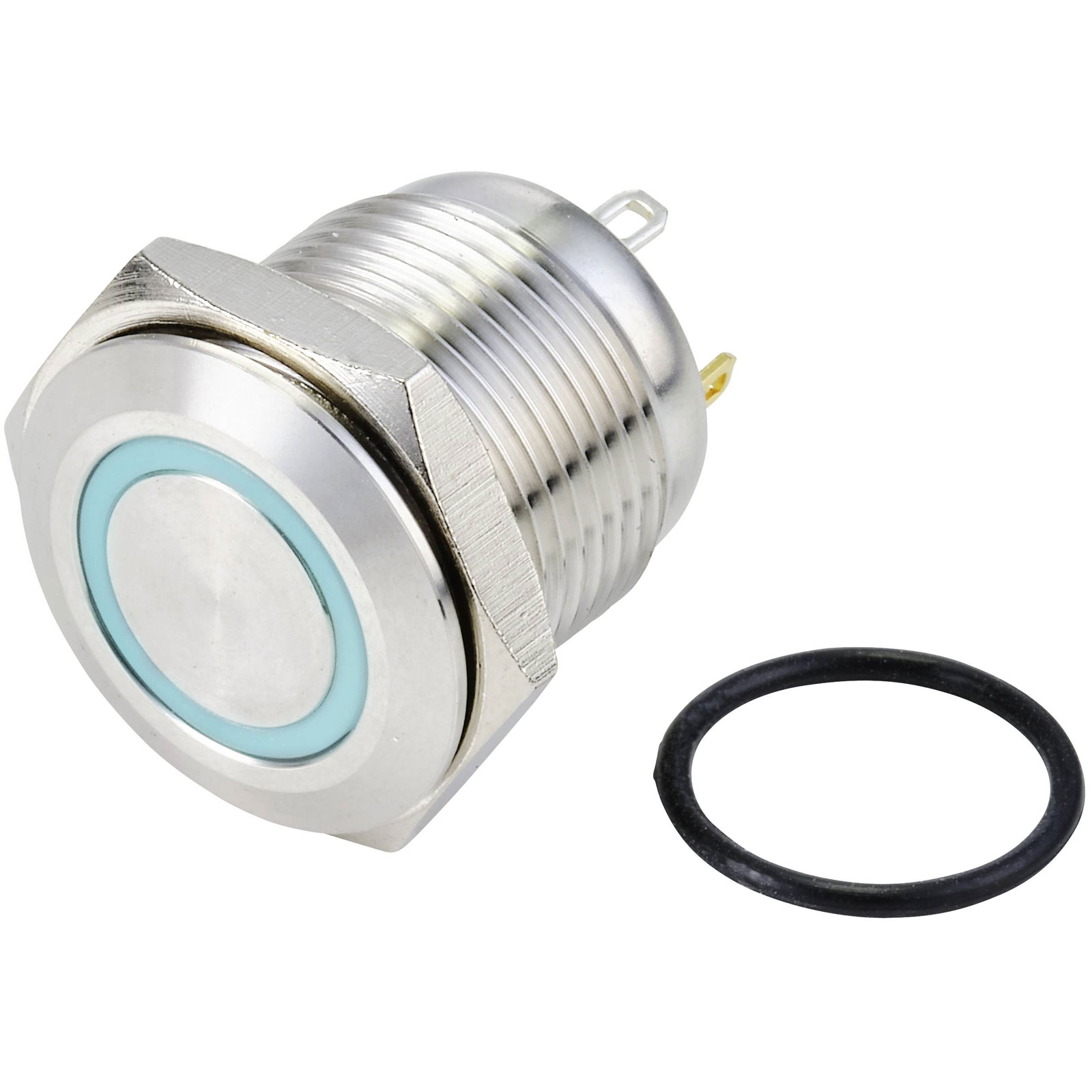

The TruComponents 78-2133 pushbutton is a tamper-proof, momentary switch with an Off/(On) single-pole single-throw (SPST) configuration. It is rated for 48 V DC and 2 A, with IP65 protection and a blue illumination. This durable switch is suitable for industrial control panels, outdoor equipment, and applications requiring reliable moisture resistance.
Type Pushbutton
Contact Configuration 1 x Off/(On)
Switch Function momentary
Current Rating 2A
Board thickness (max.) 6mm
Bulb Type LED (monochrome)
Casing/button colour Stainless steel
Colour Blue
Connection Soldering
Contact Material Silver alloy
Dielectric Strength 1500 VAC
Electrical lifespan 50000
Insulation Resistance ≥ 100MΩ
IP Rating IP65
Lighting type Circular lighting
Max. temperature +55°C
Min. temperature -25°C
Misc Attribute GQ16F-10E/J/B/24V/S
Plastic free packaging Plastic-free packaging
Recess depth 20mm
Recess diameter 17mm
Switching Voltage 48V DC
