TruComponents 781999 Pushbutton ,Panel Mount,Off/On,SPST,Solder

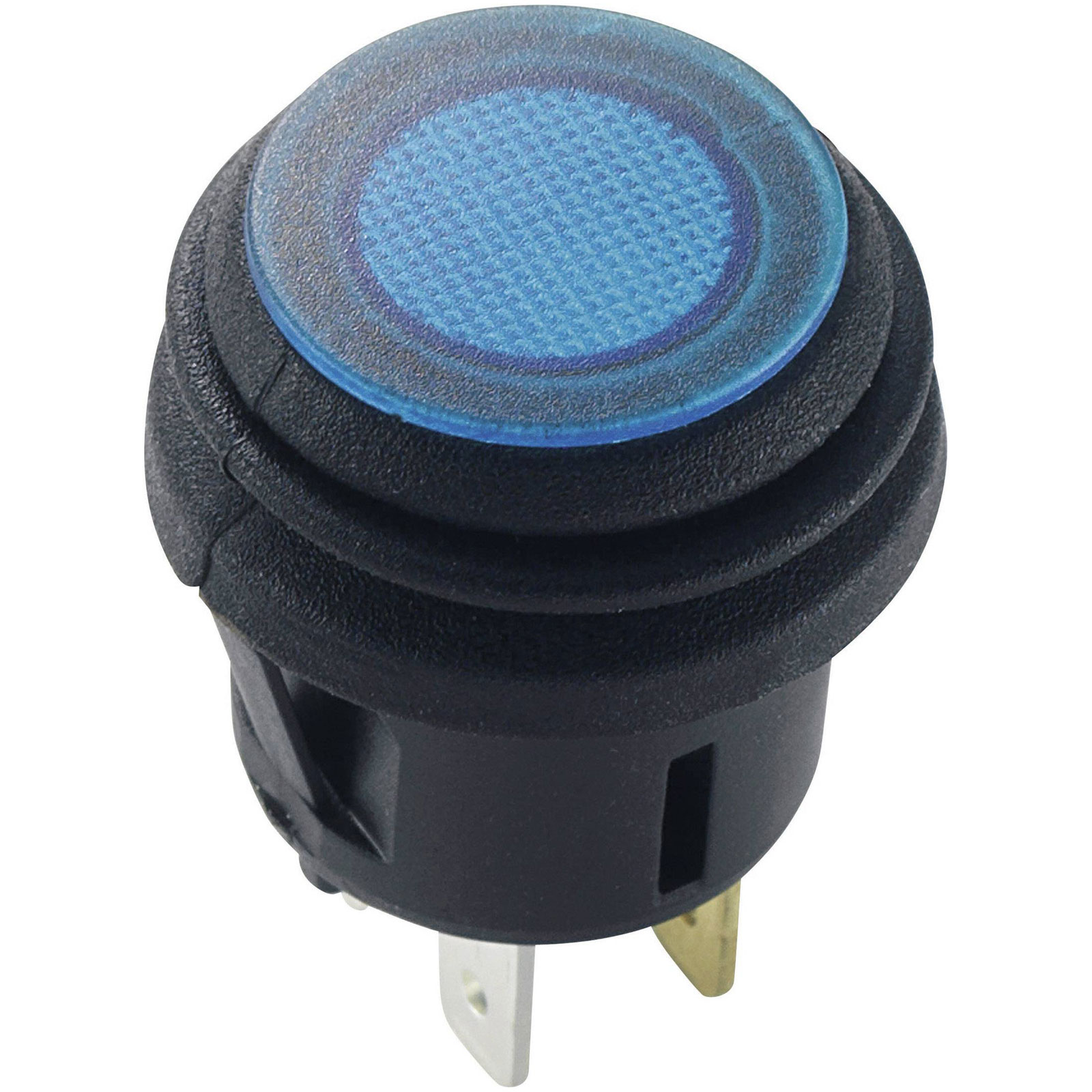

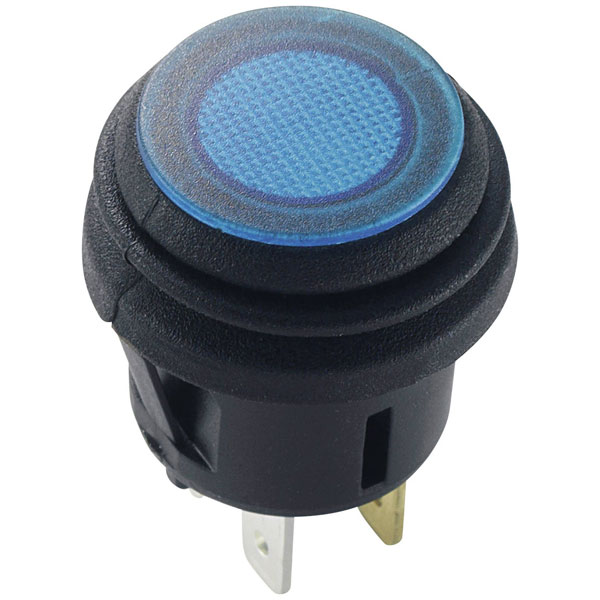

The TruComponents 78-1999 pushbutton is a blue illuminated panel mount switch with a single-pole single-throw (SPST) latching configuration for on/off functionality. It operates at a voltage of 14V DC with a current rating of 20A. This pushbutton is typically used in applications requiring reliable on/off control, such as in electronic devices and equipment panels.

Type	Pushbutton
Contact Configuration	1 x Off/On
Switch Function	1 breaker
Current Rating	20A
Mounting	Panel
Illumination	Blue
Panel Cutout Dimensions	20.2 dia
Board thickness (max.)	2.5mm
Bulb Type	LED (monochrome)
Casing/button Colour	Black
Colour	Blue
Connection	Type C CEE 7/16 plug 4.8mm
Contact Resistance	Max. 50mΩ
Dielectric Strength	1500V AC
Insulation Resistance	100MΩ
Lighting Type	Area illumination
Maximum Temperature	+85°C
Min. temperature	-25°C
Misc Attribute	TC-R13-527D2B
Recess Diameter	20.2mm
Switch/button features	Protruding
Switching Voltage	14V DC
