TruComponents 781995 Pushbutton ,Panel Mount,Off/(On),SPST-NC,Solder

TruComponents
Order Code:

78-1995

Brand: TruComponents MPN: 781995 EAN-13: 4064161300061
Qty Unit Price (Ex VAT)
5+ £1.08
10+ £1.05
25+ £1.03
50+ £1.00
100+ £0.979
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,040 available to back orderBack-order availability date - 09/01/2026

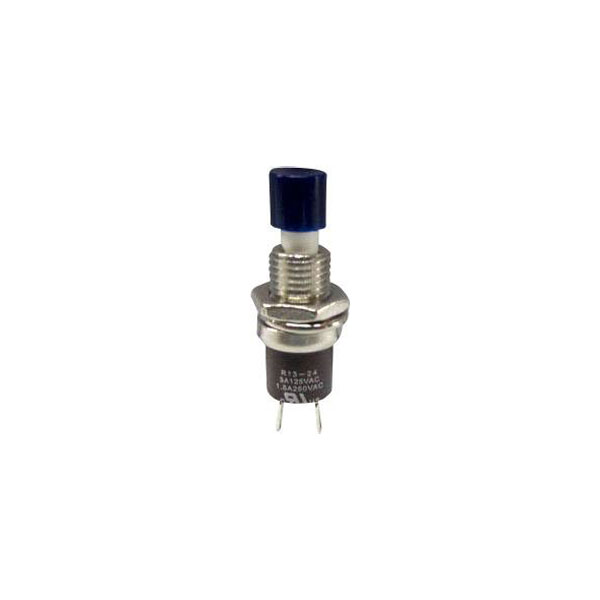

The TruComponents 78-1995 pushbutton is a blue panel mount, non-illuminated, normally-closed switch with a momentary action, suitable for applications requiring a reliable, easy-to-use interface. It operates with a voltage rating of 250 V AC and a current of 1.5 A, making it ideal for light-duty switch tasks. This pushbutton is typically used in control panels and other electronic devices.
Type Pushbutton
Contact Configuration 1 x On/(Off)
Switch Function 1 breaker
Current Rating 1.5A
Board thickness (max.) 4mm
Button diameter 6mm
Casing/button colour Blue
Connection Solder tag
Contact Resistance max. 50mΩ
Height 5.6mm
Insulation Resistance min 100 MΩ (500 V/DC)
Lighting type None
Misc Attribute TC-R13-24B1-05 BL
Recess diameter 7.2mm
Switch/button features Protruding
Switching Voltage 250V AC
