TruComponents 781992 Pushbutton ,Panel Mount,Off/(On),SPST-NC,Solder

TruComponents
Standard range
Order Code:

78-1992

Brand: TruComponents MPN: 781992 EAN-13: 4064161300030
Qty Unit Price (Ex VAT)
1+ £1.49
5+ £1.45
10+ £1.42
25+ £1.39
50+ £1.36
100+ £1.33
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
7,994 in stock, despatched in 4 working days

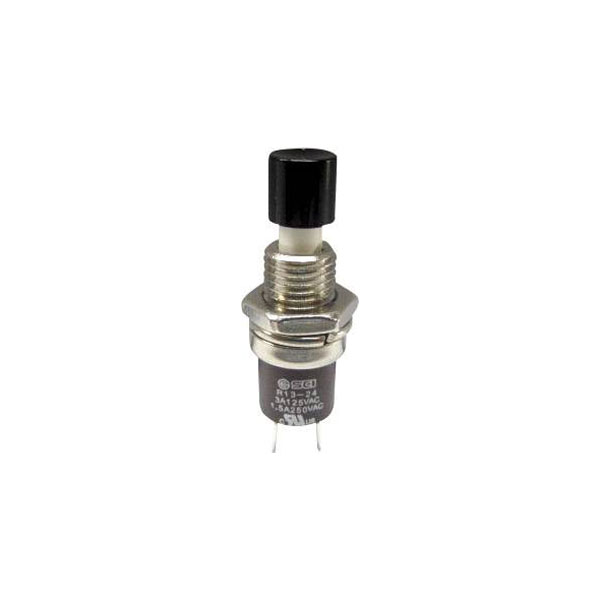

The TruComponents 78-1992 pushbutton is a black, panel-mounted pushbutton switch. It is rated for 250 V AC and 1.5 A, featuring a single-pole, normally-closed configuration with a momentary action. This switch is typically used in applications requiring a reliable momentary contact, such as control panels and electronic projects.
Type Pushbutton
Board thickness (max.) 4mm
Button diameter 6mm
Casing/button colour Black
Connection Solder tag
Contact resistance max. 50mΩ
Contact type 1 breaker
Functions momentary
Height 5.6mm
Insulation resistance min 100 MΩ (500 V/DC)
Lighting type None
Misc Attribute TC-R13-24B1-05 BK
Recess diameter 7.2mm
RoHS-compliant Yes
Switch position 1 x On/(Off)
Switch/button features Protruding
Switching current (max.) 1.5A
Switching voltage 250V AC
