TruComponents 781985 Pushbutton ,Panel Mount,Off/(On),SPST-NO,Solder

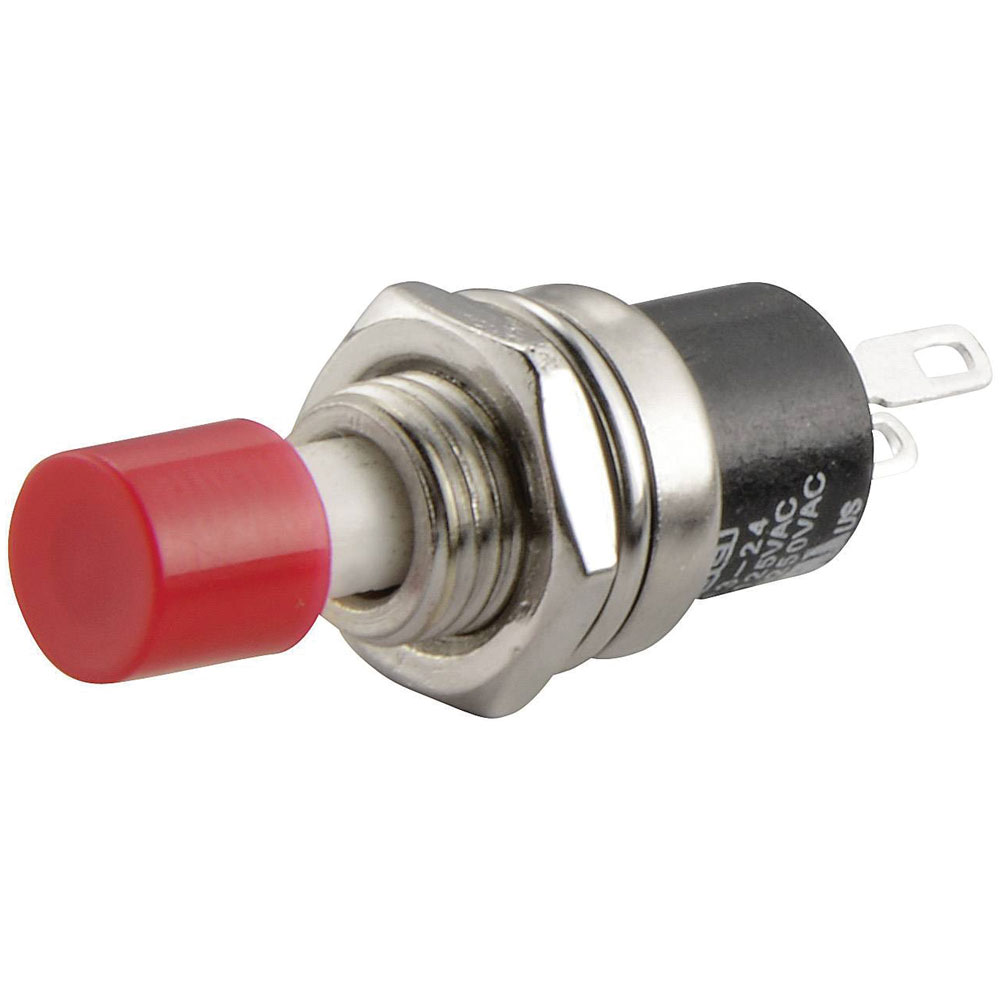

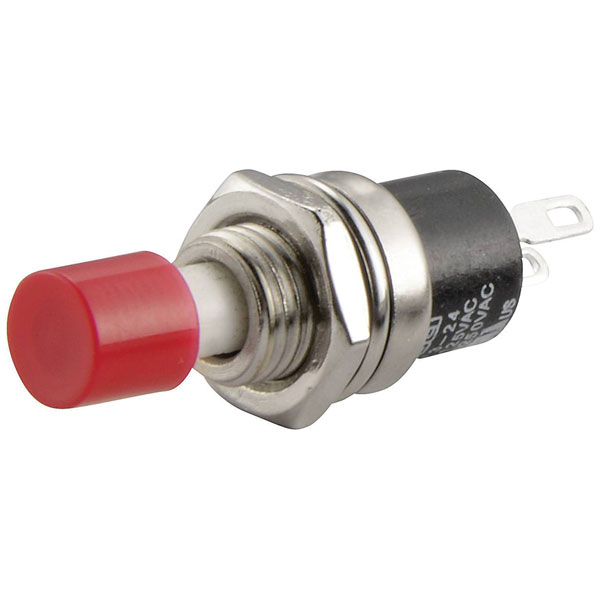

The TruComponents 78-1985 pushbutton is a red panel-mounted, miniature switch with a normally open configuration and a red actuator. It operates at a voltage rating of 250 V AC and a current rating of 1.5 A, featuring a momentary action with an off/(on) switch mechanism. Typically used in electronic projects and control panels, it is suitable for applications requiring momentary contact and manual operation.

Type	Pushbutton
Contact Configuration	1 x Off/(On)
Switch Function	1 maker
Current Rating	1.5A
Mounting	Panel
Illumination	Non-Illuminated
Panel Cutout Dimensions	7.2
Button Diameter	6mm
Casing/button Colour	Red
Connection	Solder tag
Height	5.6mm
Insulation Resistance	min 100 MΩ (500 V/DC)
Lighting Type	None
Misc Attribute	TC-R13-24A1-05 RD
Recess Diameter	7.2mm
Switch/button features	Protruding
Switching Voltage	250V AC
