TruComponents 781955 Pushbutton ,Panel Mount,Off/(On),SPST-NO,Solder

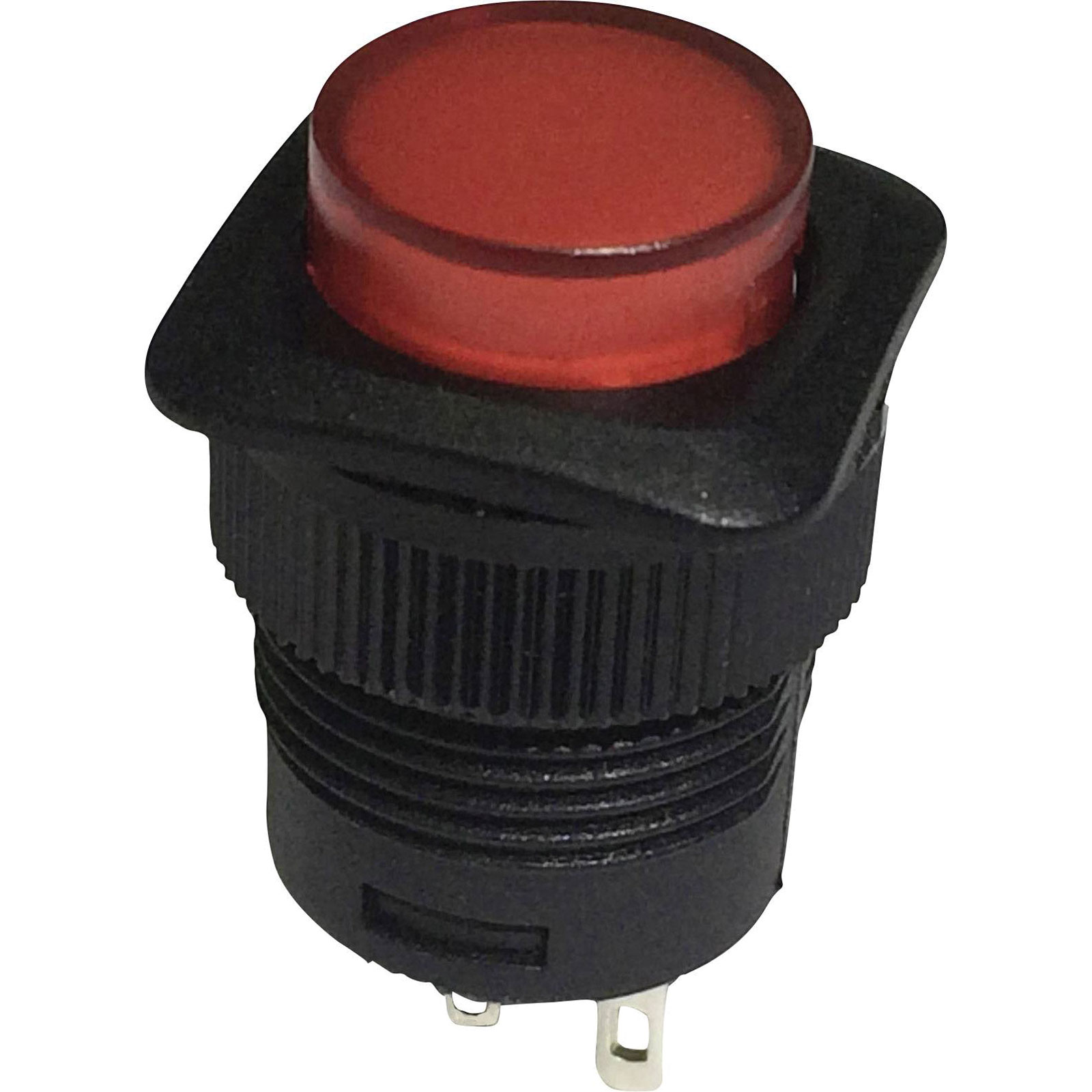

The TruComponents 78-1955 Red Pushbutton is a high-quality momentary switch designed for versatile applications. It operates at 250V AC and 1.5A and has solder tags for installation. Featuring a single Off/(On) configuration for precise control, the pushbutton is flattened on both sides for front panel locking. The pushbutton’s robust construction ensures long-lasting performance. Ideal for both industrial and consumer electronics, this pushbutton combines functionality with ease of use.

Type	Pushbutton
Contact Configuration	1 x Off/(On)
Switch Function	1 maker
Current Rating	1.5A
Mounting	Panel
Voltage Rating	250v
Panel Cutout Dimensions	16
Board thickness (max.)	7mm
Casing/button Colour	Red
Connection	Solder pins
Contact Resistance	max. 50mΩ
Dielectric Strength	1500V AC
Insulation Resistance	min 100 MΩ/500V DC
Lighting Type	None
Misc Attribute	TC-R13-508A-05RT
Recess Diameter	16mm
Switch/button features	Protruding
Switching Voltage	250V AC
