TruComponents 781945 Pushbutton ,Panel Mount,Off/On,SPST,Solder

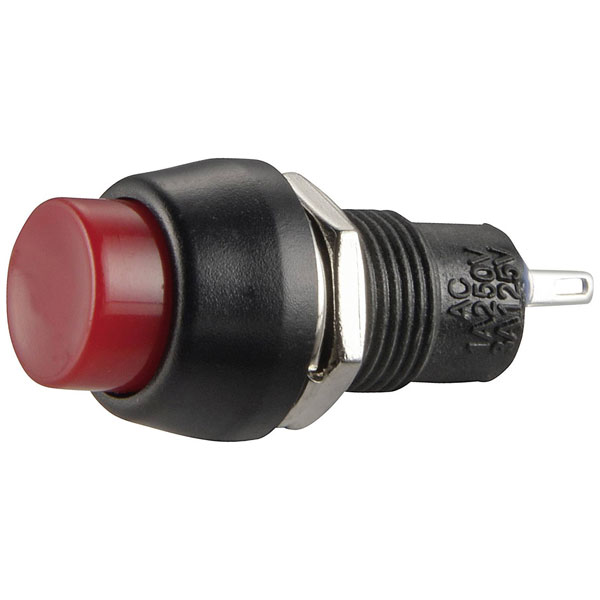

The TruComponents 78-1945 Red Pushbutton is a high-quality, latching switch designed for reliable performance in various applications. Rated at 250V AC and 1A. This round pushbutton with guide groove for front panel mounting and solder tags, features a single off/on configuration, ensuring precise control. Its robust construction and durable materials make it suitable for both professional and DIY projects, providing a dependable solution for your switching needs.

Type	Pushbutton
Contact Configuration	1 x Off/On
Switch Function	1 maker
Current Rating	1A
Mounting	Panel
Illumination	Non-Illuminated
Panel Cutout Dimensions	10.2
Board thickness (max.)	3mm
Casing/button Colour	Red
Connection	Solder pins
Contact Resistance	max. 50mΩ
Dielectric Strength	1500 V/AC/60 s
Insulation Resistance	min 100 MΩ/500V DC
Lighting Type	None
Material	Phenol
Misc Attribute	TC-R13-84B-05RT
Recess Diameter	10.2mm
Switch/button features	Protruding
Switching Voltage	250V AC
