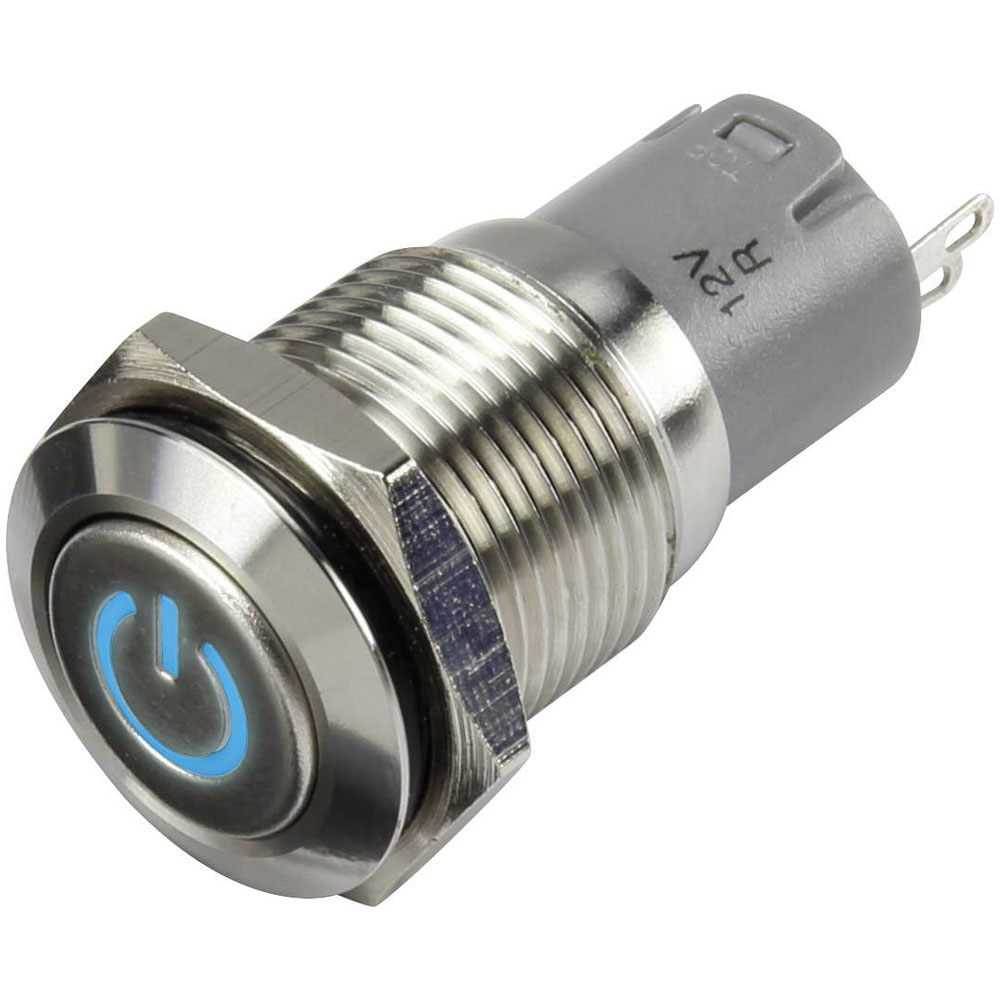

TruComponents 781902 Pushbutton ,Panel Mount,On/On,SPDT,Solder Pins,IP65

The TruComponents 78-1902 Pushbutton is a high-quality, latching switch designed for reliable performance in demanding environments. Rated at 48V DC and 2A, this pushbutton features a robust steel casing, a blue LED indicator, and solder tags for easy installation. With an IP65 rating, it offers excellent protection against dust and water ingress, making it suitable for industrial applications. The pushbutton has a lifespan of 200,000 cycles, ensuring long-term durability and consistent operation. Ideal for various control panel applications, it combines functionality with a sleek design.

Type	Pushbutton
Contact Configuration	1 x On/On
Switch Function	latch
Current Rating	2A
Board thickness (max.)	10mm
Bulb Type	LED (monochrome)
Button diameter	18mm
Casing/button colour	Steel
Colour	Blue
Connection	Solder tag
Durability	200000 cycles
Electrical lifespan	50000 cycles
IP Rating	IP65
Lighting type	Power symbol
Material	Steel
Max. temperature	+55°C
Min. temperature	-20°C
Misc Attribute	LAS2GQF-11ZDT/B/12V/S/P
Print motif	None
Recess depth	36.4mm
Recess diameter	16mm
Shape	Round
Switching Voltage	48V DC
