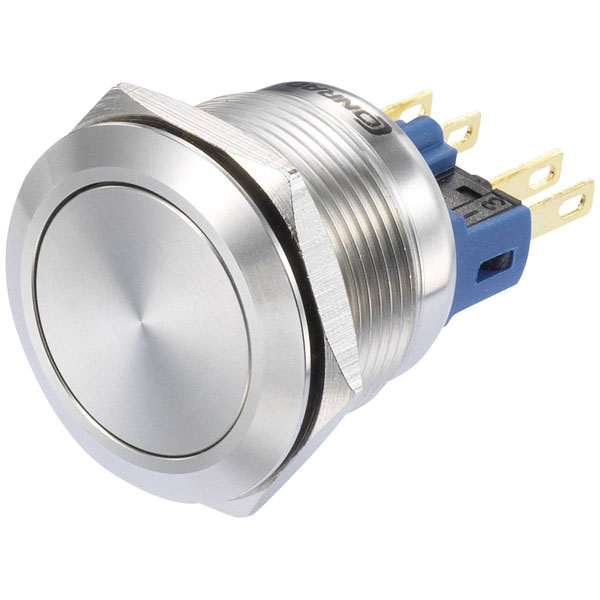

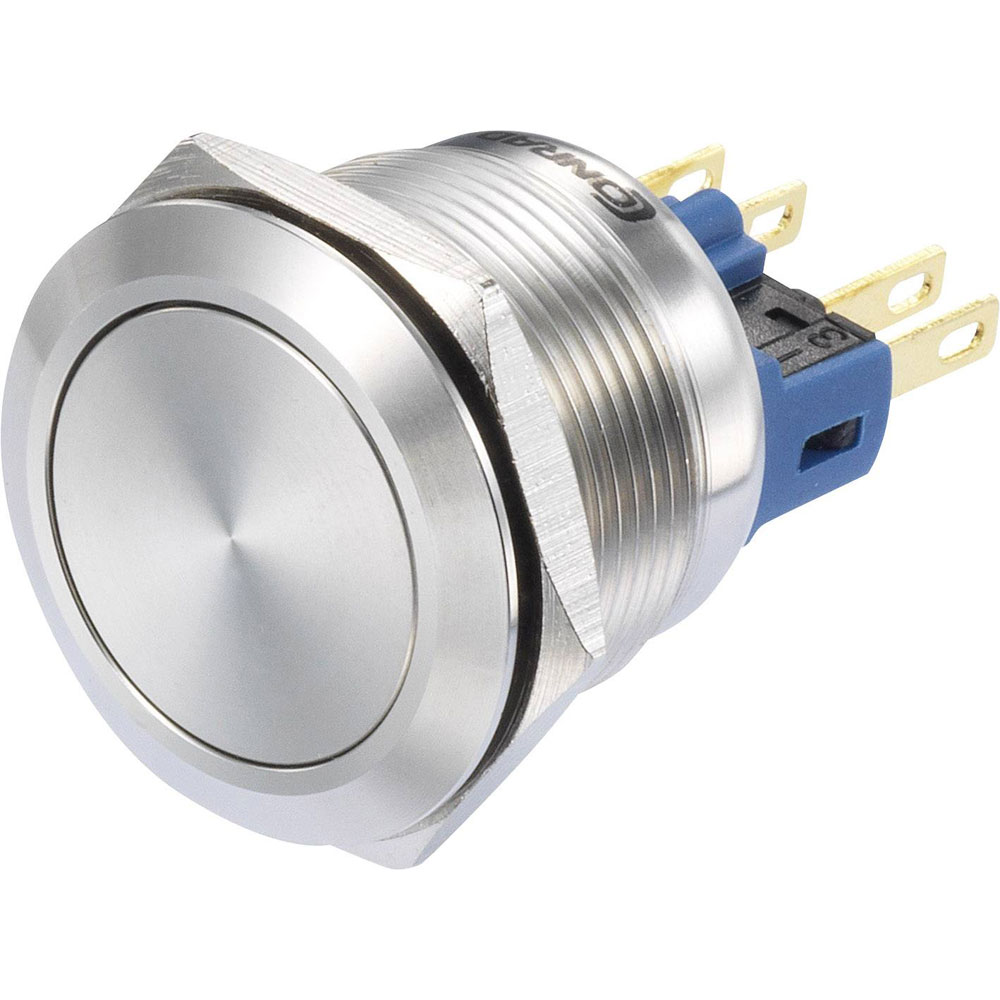

TruComponents 781895 Pushbutton ,Panel Mount,Off/(On),SPDT,Solder,IP65

The TruComponents 78-1895 Pushbutton Switch is a high-quality, momentary switch designed for various electrical applications. Key features include a maximum switching current of 3A at 250V AC, a robust stainless steel construction, and an IP65 rating for dust and water resistance. The switch has a 1 x On/(On) configuration, a flat actuator, and solder tag terminals for easy installation, ensuring reliable and long-lasting performance, making it an excellent choice for both industrial and consumer electronics.

Type	Pushbutton
Contact Configuration	1 x On/(On)
Switch Function	Momentary
Current Rating	3A
Mounting	Panel
Illumination	Non-Illuminated
Panel Cutout Dimensions	N/A
(Ø)	21mm
Board thickness (max.)	8mm
Button Diameter	25mm
Casing/button Colour	Steel
Connection	Type C CEE 7/16 plug 2.8mm
Dim	(Ø) 21mm
Durability	1 000 000 cycles
Electrical lifespan	50000 cycles
IP Rating	IP65
Lighting Type	None
Material	Steel
Maximum Temperature	+55°C
Min. temperature	-20°C
Misc Attribute	GQ22-11/S
Print motif	None
Recess depth	35.8mm
Recess Diameter	22mm
Shape	Round
Switch/button features	Planar
Switching Voltage	250V AC
