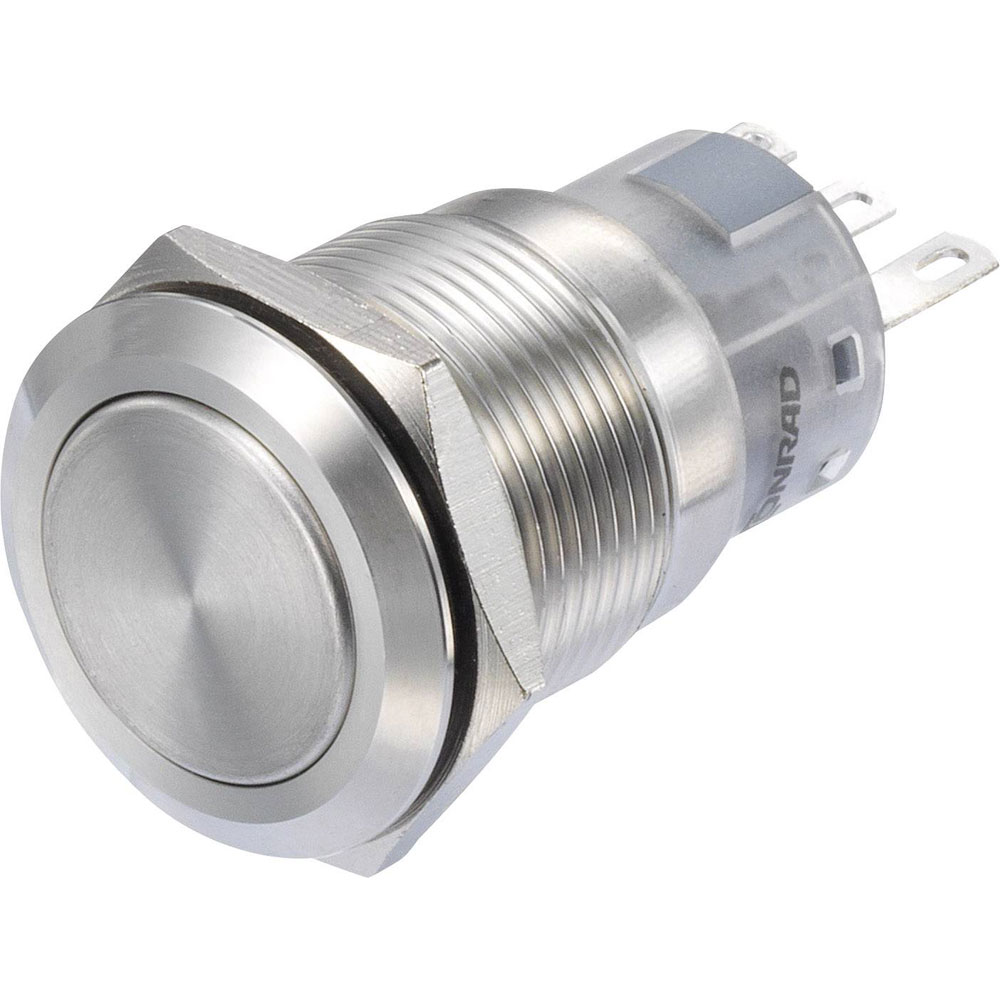

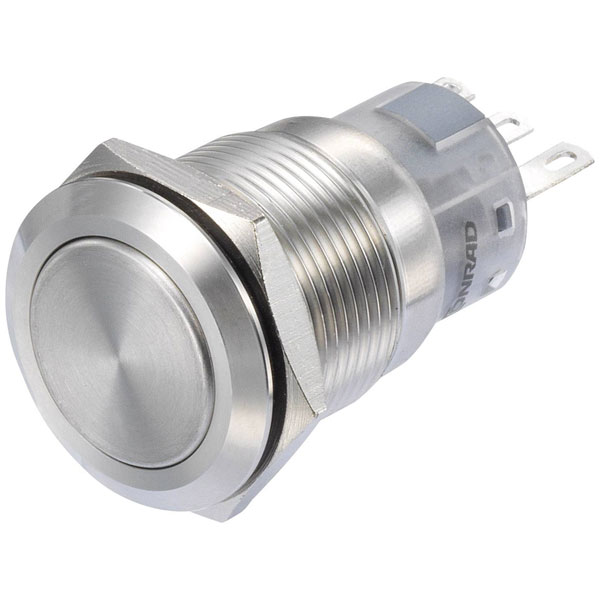

TruComponents 781892 Pushbutton ,Panel Mount,Off/(On),SPDT,Solder,IP65

The TruComponents 78-1892 Pushbutton Switch is a high-quality, latching switch designed for various electrical applications. Key features include a maximum switching current of 3A at 250V AC, a robust stainless steel construction, and an IP65 rating for dust and water resistance. The switch features a 1 x On/(On) configuration, a flat actuator, and has solder tag terminals for easy installation, ensuring reliable and long-lasting performance, making it an excellent choice for both industrial and consumer electronics.

Type	Pushbutton
Contact Configuration	1 x On/On
Switch Function	latch
Current Rating	3A
Board thickness (max.)	10mm
Button diameter	22mm
Casing/button colour	Steel
Connection	Type C CEE 7/16 plug 2.8 mm
Durability	1 000 000 cycles
Electrical lifespan	50000 cycles
IP Rating	IP65
Lighting type	None
Material	Steel
Max. temperature	+55°C
Min. temperature	-20°C
Misc Attribute	LAS1-AGQ-11Z/S
Print motif	None
Recess diameter	19mm
Shape	Round
Switch/button features	Planar
Switching Voltage	250V AC
