TruComponents 781885 Pushbutton ,PCB Mount,Off/(On),SPST

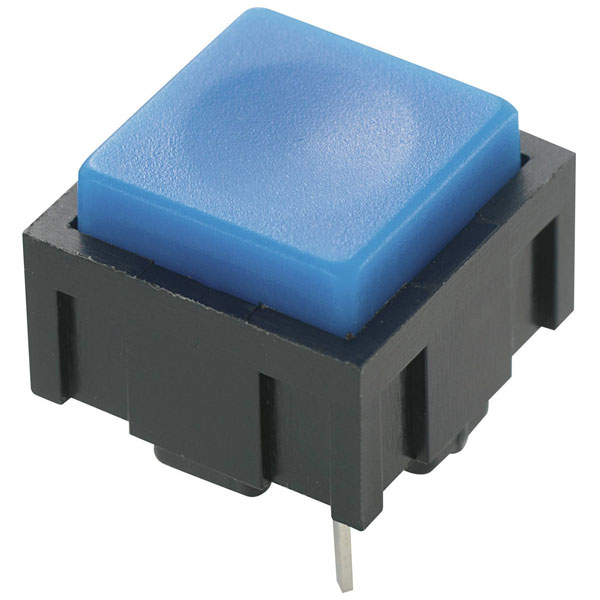

The TruComponents 78-1885 Blue Square Pushbutton is a high-quality, momentary action, bounce-free button switch with ‘click effect’, designed for PCB mounting. Key features include a maximum switching voltage of 50V DC/AC, a switching current of 25mA, convex actuator, and self-cleaning contacts. The pushbutton is housed in a durable plastic case and features pin terminals for easy installation. Its reliable and long-lasting performance makes it an excellent choice for both industrial and consumer electronics.

Type	Pushbutton
Contact Configuration	1 x Off/(On)
Switch Function	1 maker
Current Rating	0.025A
Mounting	PCB
Illumination	Non-Illuminated
Panel Cutout Dimensions	N/A
Casing/button Colour	Blue
Connection	Print
Dim	(L x W) 12.4 mm x 12.4 mm
Length	12.4mm
Lighting Type	None
Material	Plastic
Maximum Temperature	+85°C
Min. temperature	-25°C
Misc Attribute 1	PBS-18B
Misc Attribute 2	Square
Switch/button features	Convex
Switching Voltage	50V DC/AC
Width	12.4mm
