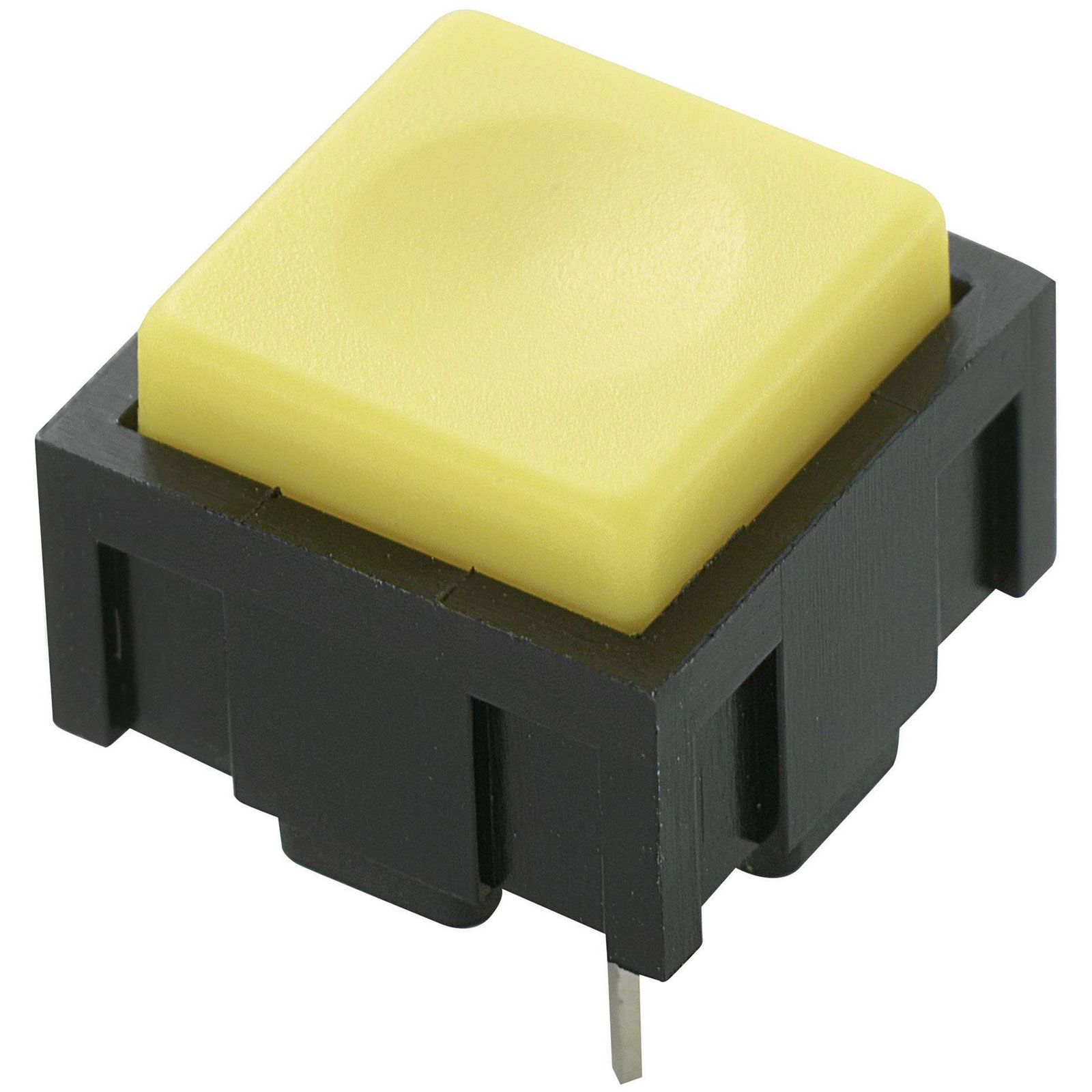

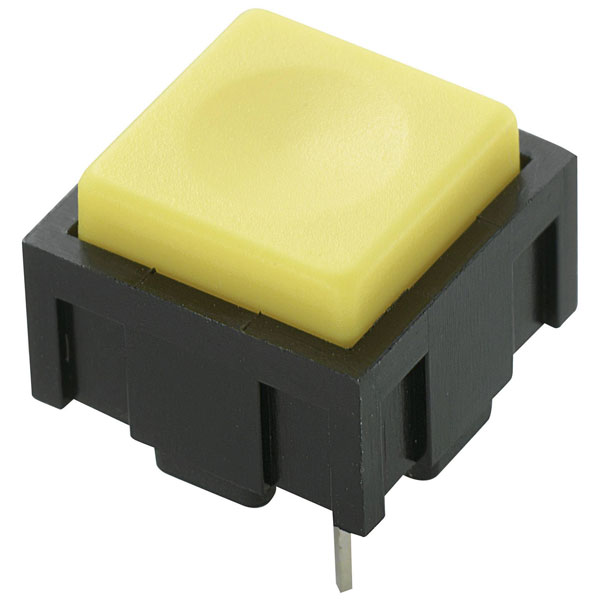

TRUCOMPONENTS 781884 Pushbutton ,PCB Mount,Off/(On),SPST

The TruComponents 78-1884 Yellow Square Pushbutton is a high-quality, momentary action, bounce-free button switch with ‘click effect’, designed for PCB mounting. Key features include a maximum switching voltage of 50V DC/AC, a switching current of 25mA, convex actuator, and self-cleaning contacts. The pushbutton is housed in a durable plastic case and features pin terminals for easy installation. Its reliable and long-lasting performance makes it an excellent choice for both industrial and consumer electronics.

Type	Pushbutton
Casing/button colour	Yellow
Connection	Print
Contact type	1 maker
Dim	(L x W) 12.4 mm x 12.4 mm
Functions	momentary
Length	12.4mm
Lighting type	None
Material	Plastic
Max. temperature	+85°C
Min. temperature	-25°C
Misc Attribute 1	PBS-18B
Misc Attribute 2	Square
RoHS-compliant	Yes
Switch position	1 x Off/(On)
Switch/button features	Convex
Switching current (max.)	0.025A
Switching voltage	50V DC/AC
Width	12.4mm
