TruComponents 781878 Pushbutton ,Panel Mount,Off/(On),SPST,Scr/term,IP65

TruComponents
Order Code:

78-1878

Brand: TruComponents MPN: 781878 EAN-13: 4064161294674
Qty Unit Price (Ex VAT)
1+ £4.56
5+ £4.45
10+ £4.35
25+ £4.25
50+ £4.16
100+ £4.07
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
499 in stock, despatched in 4 working days

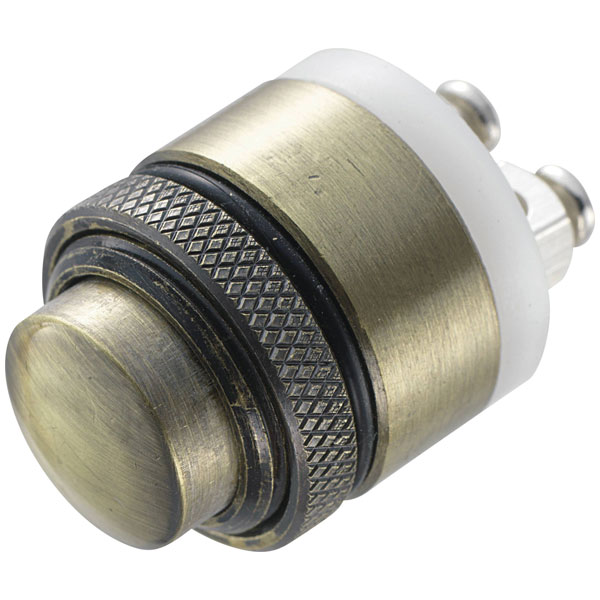

The TruComponents 78-1878 Tamper-proof Pushbutton is a high-quality, momentary action switch designed for secure and reliable operation in various electrical applications. With a maximum switching current of 2A at 36V DC, this pushbutton features a convex brass actuator and screw terminals for easy installation. Its robust construction ensures long-lasting performance, making it an excellent choice for both industrial and consumer electronics.
Type Pushbutton
Actuating Force 5.5N
Board thickness (max.) 6mm
Casing/button colour Brass
Contact Material Silver alloy
Contact Resistance ≤ 50mΩ
Contact Type 1 maker
Dielectric Strength 2000V AC
Durability 1000000 cycles
Electrical lifespan 200000 cycles
Functions momentary
Insulation Resistance ≥ 1000MΩ
IP Rating IP40
Key Type curved, raised/convex
Lighting type None
Material Brass
Material (details) Brass
Max. temperature +70°C
Min. temperature -20°C
Misc Attribute 1 1-pole Off/(On)
Misc Attribute 2 GQ-16B-M
Recess diameter 16mm
Switch position 1 x Off/(On)
Switch/button features Convex
Switching current (max.) 2A
Switching Voltage 36V DC
Temperature Range -20 - +70°C
