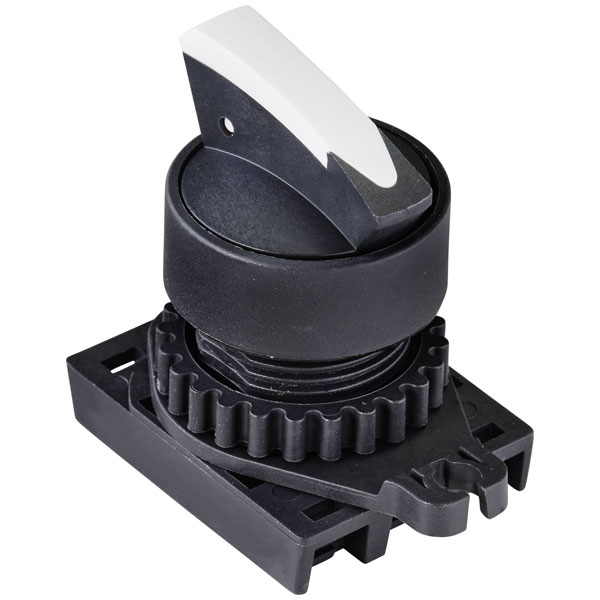

TruComponents 660026 Selector Toggle White 1 x 90 °

When it comes to enabling human interaction with devices and cuffs, selecting the appropriate switch/button is critical to the specific requirement. Tru Components offers professional solutions for different requirements with the S2SRN series, which is specially designed for the industrial sector. The models of the IP65 degree of protection are designed for a temperature range of -15 to 55°C and are available in different switching angles and switching positions. The mechanical selector switches/buttons with robust and innovative design offer increased reliability in every respect.

Type	Toggle
(Ø)	22mm
Connection	External contact
Dim	(Ø x H) 22 mm x 25.3 mm
Electrical lifespan	≧100,000 operations (20 operations/min)
Factory colour	White
Functions	latch
Height	25.3mm
IP Rating	IP52
Max. temperature	55°C
Min. temperature	-15°C
Misc Attribute 1	S2SRN-S3AW
Misc Attribute 2	Off/On
Operation type	Toggle
Print motif	Arrow symbol
Recess diameter	25mm
Switching angle	1 x 90 °
Switching Voltage	250V
