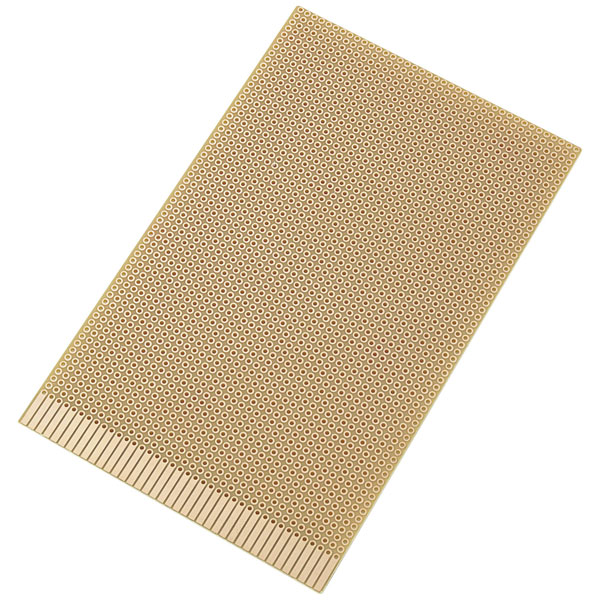

TruComponents 654974 Eurocard PCB Phenolic 160 mm x 100 mm 35 µm,Pitch:2.54 mm

Introducing the Eurocard PCB Phenolic, measuring 160 mm x 100 mm with a thickness of 35 µm and a pitch of 2.54 mm. This high-quality printed circuit board is designed for optimal performance and reliability in various electronic applications. Its phenolic material ensures durability and excellent electrical insulation, making it an ideal choice for both prototyping and production. Enhance your projects with the precision and versatility of the Eurocard PCB, tailored to meet the demands of modern electronics. Euro board for direct plug, too.

Type	Eurocard PCB
Hole Pitch	2.54mm
Length	160mm
Thickness	1.6mm
Width	100mm
Base Material	Phenolic paper
Copper coating (thickness)	35µm
CS	2.54mm
Dimensions	(L x W) 160 mm x 100 mm
Hole Diameter	1mm
Misc Attribute 1	single sided
Misc Attribute 2	SU527661
Misc Attribute 3	Pads
Number of conductor strips	39
