These crimp connectors guarantee high-strength, long-life connections – processed with the matching crimp tools. Optimal results thanks to high-quality materials that are long lasting and easy to process.
This product series comprises the most frequently used versions in practice. The assortment is particularly suitable for hobbyists, professionals, field service, service workshops, electronics and laboratory use. The content is well described and sorted into a re-closable assortment box.

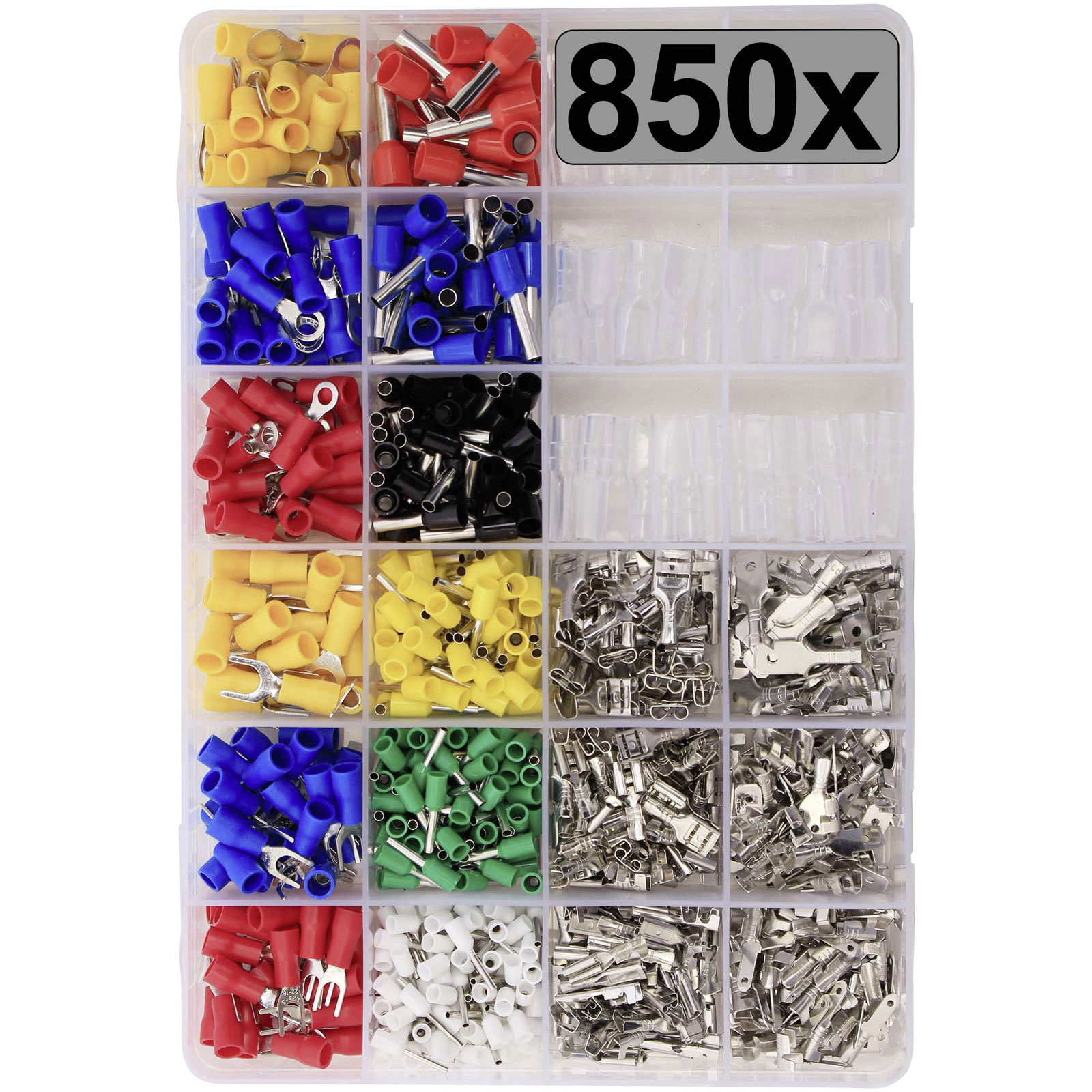

Delivery scope
Fork terminals: Red Ø 3.1 mm - 25 pieces, blue Ø 4.1 mm - 25 pieces, yellow Ø 5.2 mm - 20 pieces, ring terminals: Red Ø 3.1 mm - 25 pieces, blue Ø 4.1 mm - 25 pieces, yellow Ø 5.2 mm - 20 pieces, wire-end sleeves: White 0.5 mm2 - 80 PCs., green 1 mm2 - 75 PCs., yellow 1.5 mm2 - 55 PCs., black 2.5 mm2 - 40 PCs., blue 4 mm2 - 25 PCs., red 6 mm2 - 15 PCs., flat plugs: 2.8mm/0.5 mm2 – 60 pieces, 4.8 mm/50 mm2 – 50 pieces, 6.3 mm/1.5 mm2 – 30 pieces, blade terminals: 2.8mm/0.5 mm2 – 60 pieces, 4.8 mm/0.5 mm2 – 0.5 pieces, 6.3 mm/1.5 mm2 – 50 pieces, insulating sleeves (transparent): 2.8 mm – 60 pieces, 4.8 mm – 50 pieces, 6.3 mm – 30 pieces
| Type |
Crimp Connector |
| Contact material |
Copper silver plated |
| Insulation material |
PVC |
| Manufacturer part # |
TC-13377256 |
| max. cross section |
6mm² |
| Min. cross section |
0.5mm² |
| Misc Attribute |
T24C029 |
| RoHS-compliant |
Yes |
