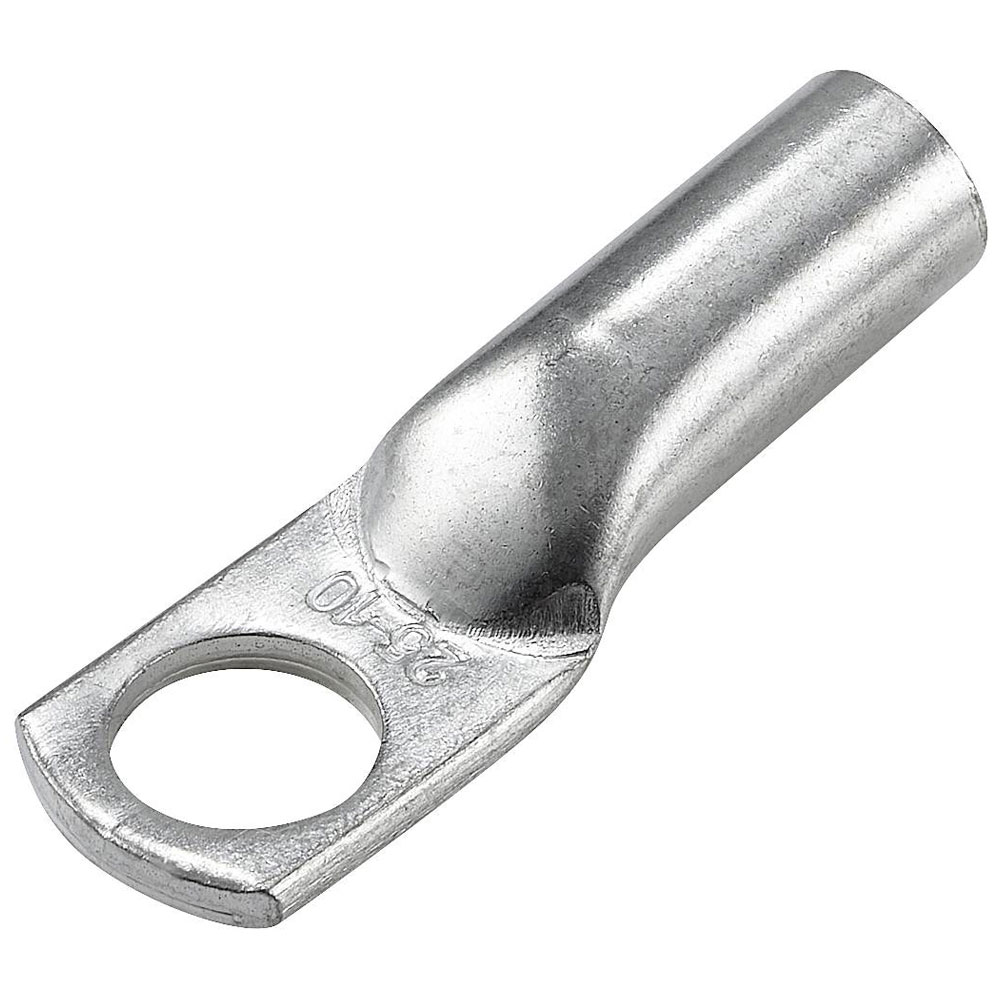

TruComponents 330061 Crimp cable lug 180 °, M10, 25 mm², Hole Ø: 10 mm,

The TruComponents 3221477 Crimp Cable Lug is a high-quality, non-insulated connector designed for secure and reliable electrical connections. Featuring a 180° connection angle and an M10 hole with a 10mm diameter, this crimp cable lug is suitable for cables with a maximum cross-section of 25mm². Made from copper and silver-plated for enhanced conductivity and corrosion resistance, it ensures optimal performance in various industrial, automotive and electrical applications.

Colour	Metal
Insulated	Not insulated
Stud Size	10mm
Maximum Wire Size (mm2)	25 mm²mm²
Connection Angle	180°
Contact Material	Copper silver plated
Hole Ø	10mm
Industrial packaging	No
max. cross section	25mm²
Maximimum Wire Gauge (AWG)	3
Misc Attribute	TC-12885908
Plastic free packaging	Plastic-free packaging
Product Type	Copper Tube Lug
Thread Size	M10
