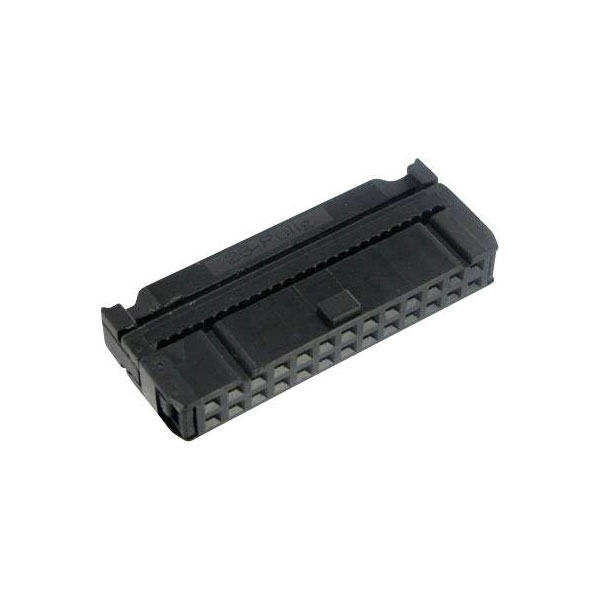

TruComponents 191605 Pin connector + strain relief Pitch:2.54mm,pins: 16 2 Rows

Image Representative of Range

TruComponents 191605 Pin connector + strain relief Pitch:2.54mm,pins: 16 2 Rows

TruComponents
Standard range
Order Code:

19-1605

Brand: TruComponents MPN: 191605 EAN-13: 2050004970500
Qty Unit Price (Ex VAT)
1+ £0.943
5+ £0.842
10+ £0.786
25+ £0.737
50+ £0.693
100+ £0.655
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
317 in stock, despatched in 4 working days

TRUCOMPONENTS 191605 Pin Connector, designed with a 2.54mm pitch and 16 pins in a dual-row configuration.
No. of rows 2
Type Pin Connector
Case material PBT fibreglass-reinforced, UL 94 V-0
Compatible with (details) Ribbon cable RM 1.27 mm
Connection Cut & Clip
Connector orientation Perpendicular (to the PCB)
Connector type Power strip, straight
Contact material Brass
CS 2.54mm
Dim (L x W x H) 25.02 x 6 x 7 mm
Factory colour Black
Height 7mm
Length 25.02mm
Manufacturer part # 1589745
Max. temperature +105°C
Min. temperature -40°C
Misc Attribute D01-16 ASA1-G
Nominal current 1A
Pins per row 8
RoHS-compliant Yes
Total number of pins 16
Width 6mm
