TruComponents 191583 Pin connector no ejector Pitch:1.27mm,pins: 26 2 Rows

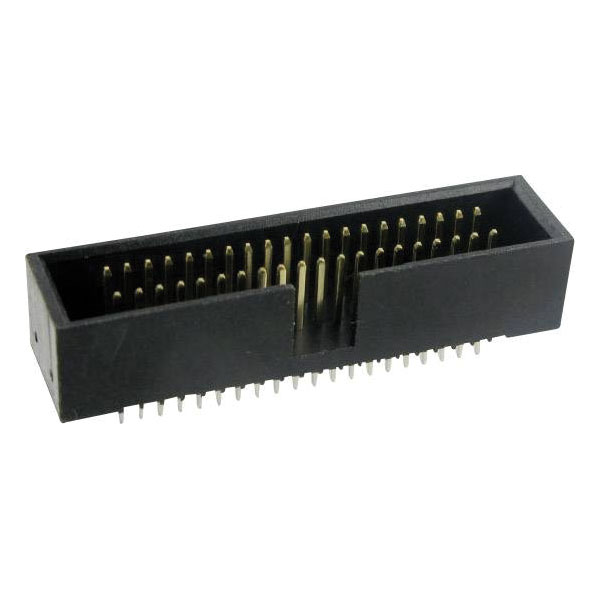

Image Representative of Range

TruComponents 191583 Pin connector no ejector Pitch:1.27mm,pins: 26 2 Rows

TruComponents
Standard range
Order Code:

19-1583

Brand: TruComponents MPN: 191583 EAN-13: 2050004964011
Qty Unit Price (Ex VAT)
1+ £3.24
5+ £2.90
10+ £2.70
25+ £2.54
50+ £2.39
100+ £2.25
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
29 in stock, despatched in 4 working days

Featuring a compact 1.27mm pitch and a robust 26-pin configuration across 2 rows, this connector is perfect for space-constrained applications in consumer electronics, automotive, and industrial machinery.
No. of rows 2
Case material PBT
Connection Cut & Clip
Connector orientation Parallel (to the PCB)
Connector type Pin strip, right angle
Contact material Phosphor bronze
CS 1.27mm
Dim (L x W x H) 24.11 x 8.10 x 7.10 mm
Factory colour Black
Height 7.10mm
Industrial packaging No
Length 24.11mm
Manufacturer part # 1589676
Max. temperature +105°C
Min. temperature -40°C
Misc Attribute F08a-26 BS1-G
Nominal current 1A
Pins per row 13
RoHS-compliant Yes
Total number of pins 26
Type Pin Connector
Width 8.10mm
