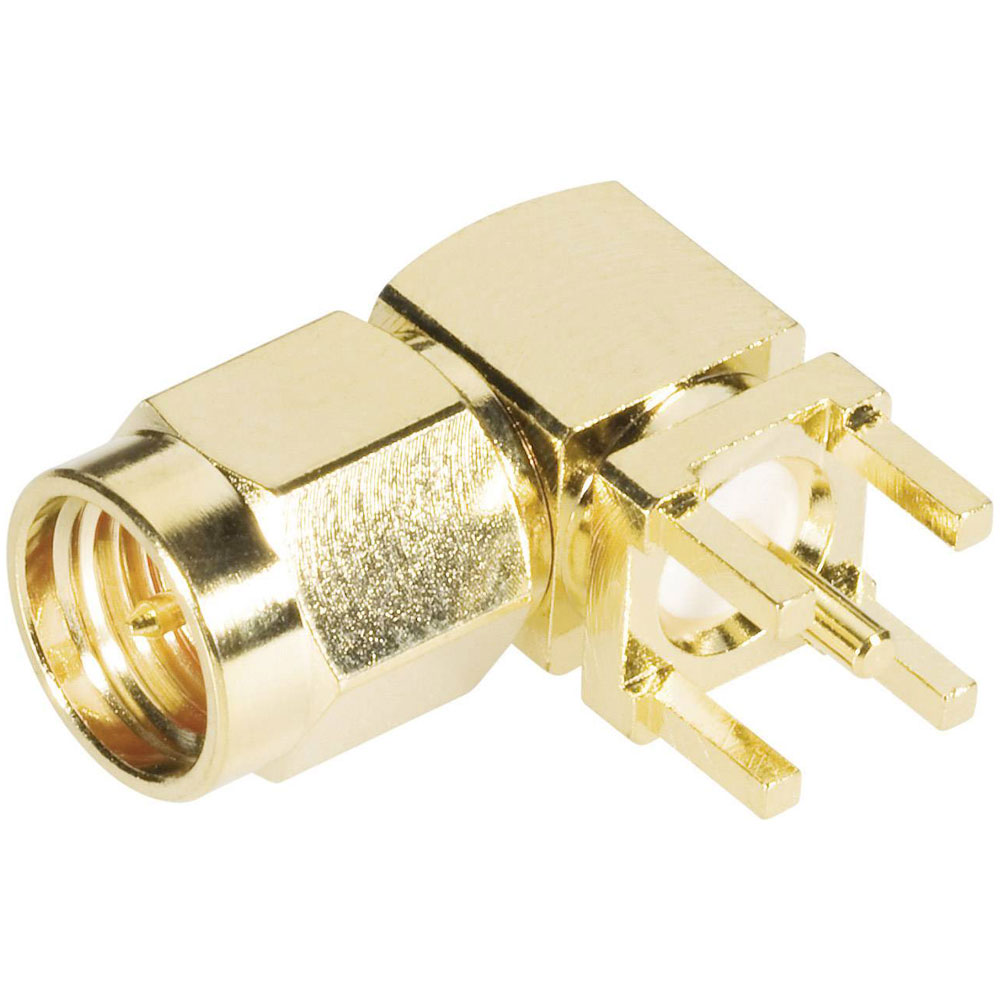

TruComponents 160794 SMA connector Plug, horizontal mount 50 Ω

TRUCOMPONENTS 160794 SMA Connector Plug, designed for optimal performance and reliability. This horizontal mount connector is perfect for a range of applications, ensuring a secure and stable connection with its 50 Ω impedance

Type	Connector Plug
Impedance	50Ω
Mounting Direction	Horizontal
Cable Type	N/A (PCB Mount)
Case Material	Brass gold plated
Connector Type	Plug, horizontal mount
Contact Termination	Print
Front panel thickness	8.4mm
Insulation Material	PTFE
Insulation Resistance	5000MΩ
Misc Attribute	1579338
