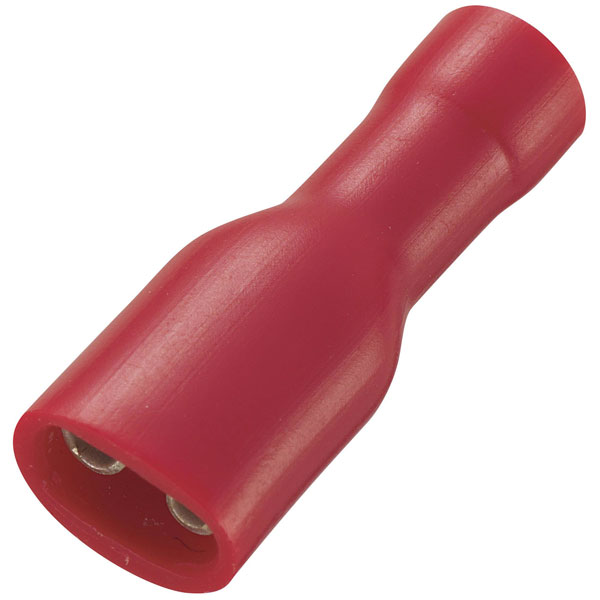

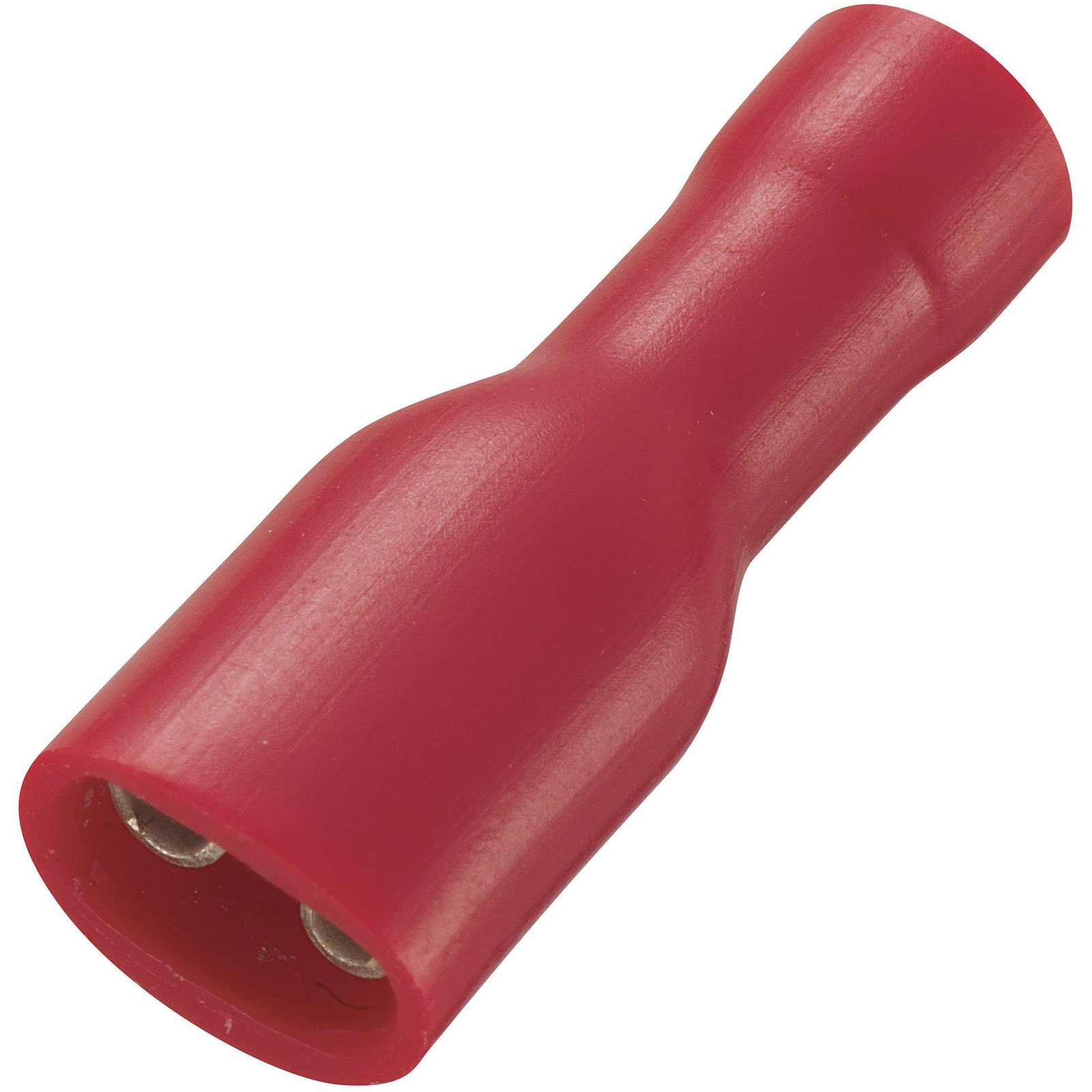

TruComponents 1583092 Blade Receptacle 6.30mm Red Part Insulated 1 piece

Image Representative of Range

TruComponents 1583092 Blade Receptacle 6.30mm Red Part Insulated 1 piece

TruComponents
Standard range
Order Code:

13-2747

Brand: TruComponents MPN: 1583092 EAN-13: 2050004924282
Qty Unit Price (Ex VAT)
1+ £0.133
10+ £0.123
50+ £0.120
100+ £0.117
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
524 in stock, despatched in 4 working days

The TruComponents 1583092 blade receptacle + branch joint is a partially insulated connector with a width of 6.30 mm and a thickness of 0.80 mm. This red crimp connector, designed for 180-degree connections, is ideal for electrical applications requiring reliable blade terminal receptacles. Typical uses include automotive and industrial wiring where secure and efficient electrical connections are essential.
AWG (min.) 22
AWG max. 16
Connection angle 180°
Connector thickness 0.80mm
Connector width 6.30mm
Contact material Copper silver plated
Cross-section range 0.50 - 1.50 mm²
Factory colour Red
Insulation material PVC
Insulation type Partially insulated
Manufacturer part # 1583092
max. cross section 1.50mm²
Min. cross section 0.50mm²
Misc Attribute 1583092
Size 6.30 x 0.80 mm
Support sleeve Yes
Type Blade receptacle
