TRU COMPONENTS1582028Fast Si rectifierTC-BY500-800DO 201800V5AStandard HF Power

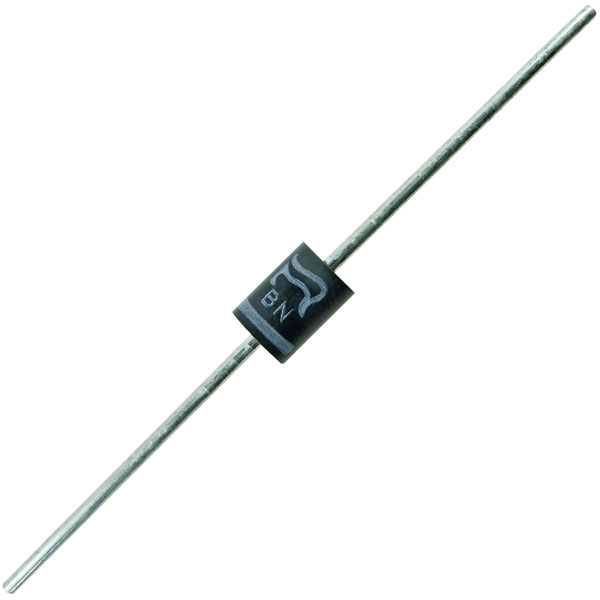

TruComponents 1582028 fast silicon rectifier, designated as the TC-BY500-800DO. This product is engineered to handle a reverse voltage of up to 800 volts and a forward current of 5 amperes, making it suitable for high-frequency power applications. Featuring standard high-frequency performance, the rectifier is optimal for use in switched-mode power supplies, DC-DC converters, and freewheeling diodes in various electronic circuits. Its robust design ensures reliability and efficiency in controlling power flow in sensitive electronic systems. Engineers seeking components that deliver precise and rapid rectification will find the 1582028 to be a pertinent addition to their projects.

Type	TC-BY500-800
Enclosure	DO 201
Forward current I(F)	5A
Forward voltage reference	5A
Forward Voltage U(F)	1.3V
Maximum Operating Temperature	+175°C
Mounting Type	Through-hole
Operating temperature (min.)	-50°C
Product Type	Fast Si rectifier
Reverse leakage Current I(r)	10µA
Reverse leakage current I(r) reference	800V
Reverse reCovery Time T(rr)	200ns
Reverse Voltage U(R)	800V
