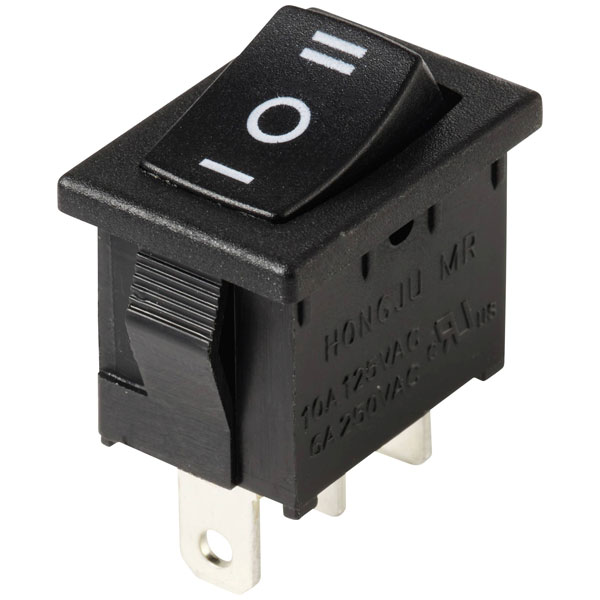

TRU COMPONENTS TC-13599544 Toggle switch 250V 6A On/Off/On latch Rocker Switch

TRU COMPONENTS TC-13599544 is a toggle switch designed to provide reliable circuit control in diverse applications. This rocker switch supports a maximum voltage of 250 V AC and a current rating of 6 A, making it suitable for use in electrical systems requiring versatile switching capabilities. It features an On/Off/On latch configuration, enabling it to maintain a stable state in either the 'on' or 'off' positions, which is ideal for use in both industrial and domestic settings. Common applications for the TC-13599544 include integration into control panels, electrical appliances, and instrumentation systems where dependable toggle action and durability are essential. The switch's robust construction and precise mechanism ensure long-term operation across varied environmental conditions.

Mounting Type	Panel mount
Contact Configuration	SPDT
Switch Function	On-Off-On
Current Rating (Amps)	6A
Actuator Marking	I/0/II
Illumination Type	None
Illumination Colour	None
Casing/button colour	Black
Contact Material	Cu-alloy, nickel plated
Contact Resistance	<20mO
Content	1
Dimensions	(L x W x H) 21 x 15 x 24.7 mm
Durability	300,000 switching cycles
Electrical lifespan	300,000 switching cycles
Front panel cut-out	13 x 19.4mm
Front panel thickness	2mm
Height	24.7mm
Length	21mm
Material	Thermoplastic
Max. temperature	80°C
Min. temperature	-10°C
Number of Pins	3
Print motif	I/0/II
Product Type	Toggle switch
Switch position	1 x On/Off/On
Type	TC-13599544
Voltage Rating	250V AC
Width	15mm
